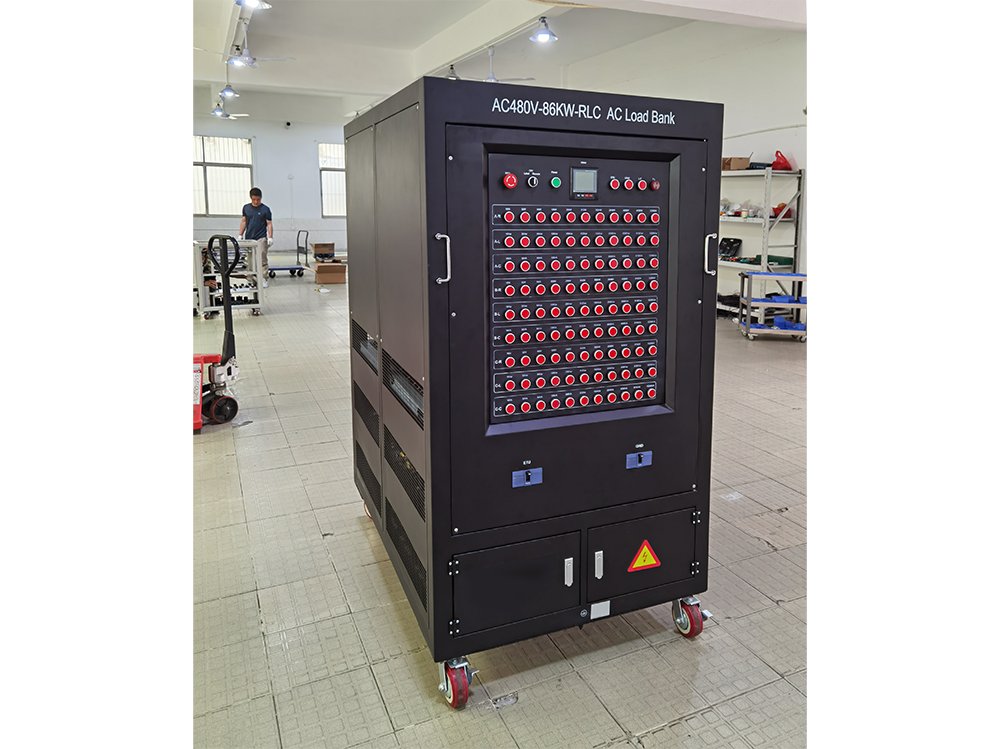

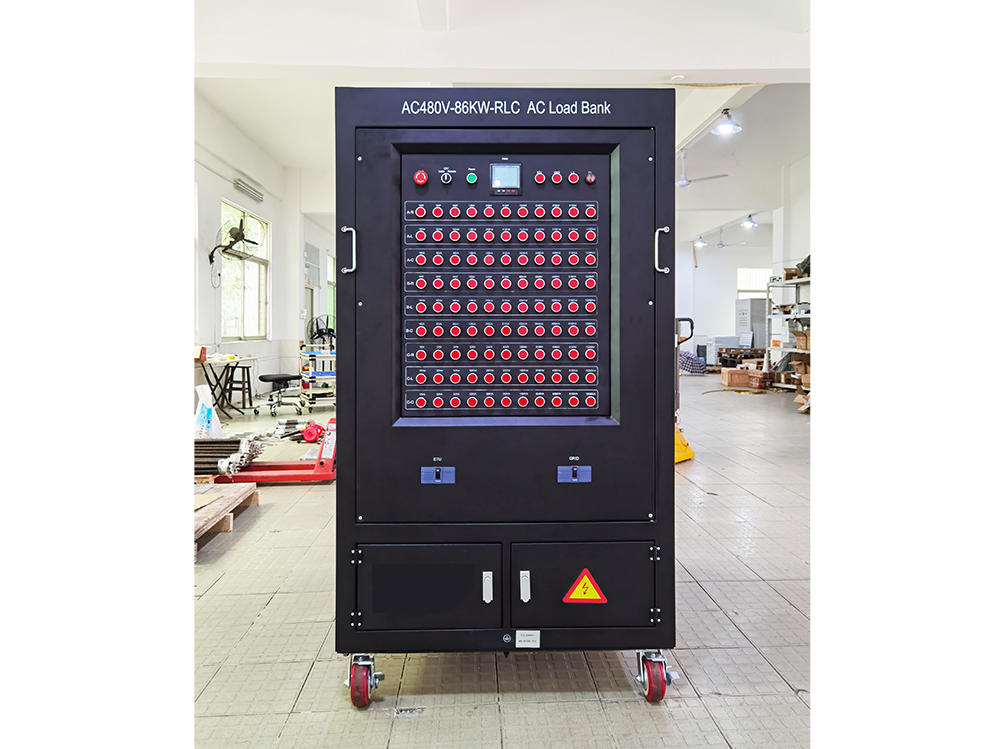

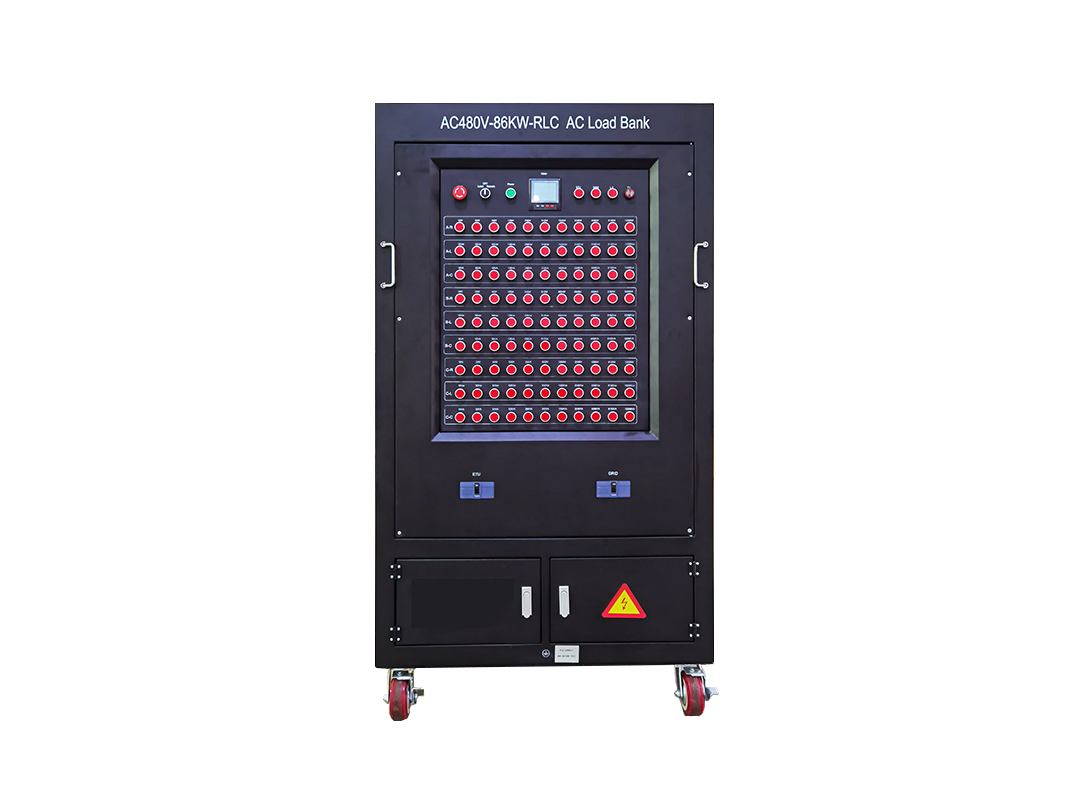

GROADA-AC480V-86KW-RLC Load Bank Factory
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-10KVA-RLC | AC380V-30KVA-RLC | AC380V-60KVA-RLC | AC380V-100KVA-RLC | AC380V-200KVA-RLC | AC380V-300KVA-RLC |
| Rated power | RLC=10KVA | RLC=30KVA | RLC=60KVA | RLC=100KVA | RLC=200KVA | RLC=300KVA |
| R=10KW;L=10KVA C=10KVA | R=30KW;L=30KVA; C=30KVA | R=60KW;L=60KVA; C=60KVA | R=100KW;L=100KVA; C=100KVA | R=200KW;L=200KVA; C=200KVA | R=300KW;L=300KVA; C=300KVA | |
| Other power can be customized according to requirements | ||||||
| Size (width * depth * height mm) | 500*750*1400 | 600*850*1500 | 1000*1100*1500 | 1100*1600*1500 | 1500*1800*1800 | 2000*2000*2000 |
| Weight | 120KG | 380KG | 580KG | 880KG | 1500KG | 2500KG |
| Input voltage | AC220/230V | AC380/400V | ||||
| Other input voltage can be customized according to requirements | ||||||
| Input current | 0-45A | 0-45A | 0-90A | 0-150A | 0-300A | 0-450A |
| Minimum loading | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=1KW;L=1KVA; C=1KVA | R=1KW;L=1KVA; C=1KVA |
| Other minimum loading power can be customized according to requirements | ||||||
| power factor | PF = 0.1~1.0 (other power factor can be customized according to requirements) | |||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | |||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | |||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||
| Relative humidity | ≤95%RH | |||||
| Altitude | ≤ 2500 m | |||||
GROADA AC480V 86kW RLC Load Bank: Precision Power Testing for Critical Applications
The GROADA AC480V 86kW RLC Load Bank is engineered to simulate real-world electrical loads, providing essential testing capabilities for AC power sources. With a versatile Resistive, Inductive, and Capacitive (RLC) configuration, this load bank is ideal for evaluating the performance of generators, uninterruptible power supplies (UPS), and other critical power systems.
🔧 Key Features
-
Comprehensive Load Simulation: The RLC configuration allows for the simulation of complex load conditions, including lagging and leading power factors, ensuring thorough testing across various scenarios.
-
High Power Capacity: With an 86kW rating at 480V, this load bank is suitable for testing medium to large-scale power systems, ensuring they meet operational standards.
-
Advanced Control System: Equipped with a user-friendly control panel, the load bank offers precise load adjustments and real-time monitoring, facilitating efficient testing procedures.
-
Safety and Reliability: Designed with built-in safety features, including over-temperature protection and fault detection, ensuring safe operation during testing.
🏭 Applications
-
Generator Testing: Verify the performance and reliability of generators under simulated operational loads, ensuring they can handle real-world demands.
-
UPS Systems: Test uninterruptible power supplies to confirm their ability to maintain power during outages, safeguarding critical equipment.
-
Renewable Energy Systems: Assess the integration and performance of renewable energy sources, such as solar and wind, within the power grid.
-
Data Centers: Ensure the reliability of power systems supporting data centers, preventing potential downtime and data loss.
📈 Industry Insights
The global load bank market is experiencing significant growth, driven by increasing demand for reliable power testing solutions across various industries. The integration of advanced control systems and a focus on energy efficiency are key trends shaping the market.
