GROADA-AC346V-50KVA-RL resistive inductive load bank

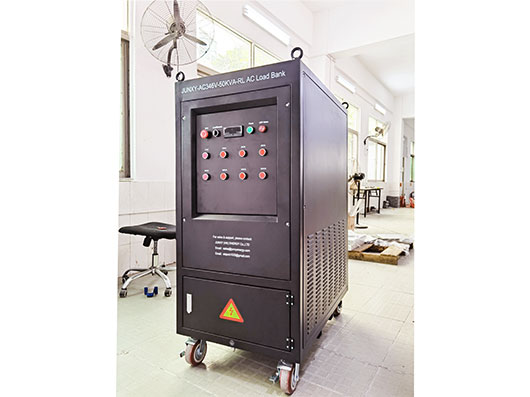

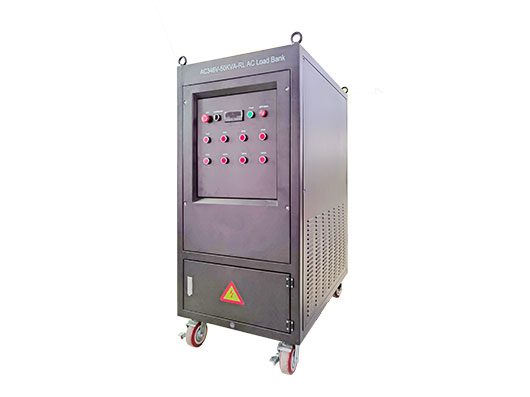

GROADA AC346V-50KVA RL AC Load Bank

GROADA AC346V-50KVA RL AC Load Bank is a high-precision resistive-inductive (RL) load cabinet designed for testing and verification of power equipment such as generators, UPS systems, inverters, data centers, and industrial power supplies.
This model supports accurate power factor adjustment (0.8 lagging to 0.8 leading), modular expansion, advanced cooling design, and intelligent protection mechanisms, ensuring stable and reliable performance in demanding applications.

Key Features

• Rated Power: 50 kVA

• Rated Voltage: 346 V AC (customizable for 380 V / 400 V / 415 V)

• Load Type: Resistive + Inductive

• Adjustable Power Factor: 0.8 lagging ~ 1.0 ~ 0.8 leading

• Modular Design: expandable by parallel connection

• Cooling: high-efficiency forced air cooling

• Protection: overload, overheat, short-circuit, fan failure alarm

• Control & Communication: manual panel + RS-485/Modbus/Ethernet remote monitoring

• Applications: power plants, generator testing, UPS aging test, renewable energy systems, EV charging stations

Technical Specifications

Working Principle

The load bank integrates resistive elements and inductive coils in modular sections.

• Load Control: PWM control enables precise step adjustment of load capacity.

• Power Factor Simulation: Supports real-time adjustment to simulate inductive and capacitive conditions.

• Protection Mechanism: Temperature sensors, fan monitoring, automatic unloading in case of fault.

• Cooling System: High-volume fans ensure fast heat dissipation and safe operation under full load.

• Smart Monitoring: Remote control and data logging via Modbus or Ethernet.

Application Scenarios

• Power Generation: Testing diesel / gas generators under full load and transient conditions.

• UPS Systems: Long-time aging tests and reliability verification.

• Renewable Energy: Grid-tie inverter and photovoltaic system validation.

• Data Centers: Simulating real IT load for facility acceptance.

• EV Charging Stations: Power electronics and charging infrastructure testing.

Why Choose GROADA?

Compared with traditional load banks, GROADA AC load banks deliver:

1. Higher accuracy in power factor adjustment.

2. Better thermal management with forced air cooling.

3. Modular and expandable architecture for flexible capacity.

4. Advanced safety protections ensuring long service life.

5. Remote monitoring & control for modern test environments.

Selection Guide

When choosing a load bank:

• Rated Power ≥ 1.2 × tested equipment rated power.

• Voltage Level must match system (300–380V standard, custom for 400/415/480V).

• Power Factor: choose RL load bank if your DUT (device under test) involves inductive / capacitive behaviors.

• Environment: outdoor use requires higher IP protection and enhanced cooling.

FAQ

Q1: Can the load bank run continuously at full power?
Yes, with proper ventilation, it can sustain continuous full-load operation.

Q2: How often should maintenance be performed?
Every 6–12 months: check fans, wiring terminals, resistance modules, and clean dust.

Q3: Does it support remote monitoring?
Yes, via RS-485 / Modbus / Ethernet for data logging, alarm, and control.

Q4: What protection functions are included?
Overload, overheat, short-circuit, and fan failure detection with automatic load disconnection.

Certifications & Quality Assurance

• ISO 9001 / ISO 14001 certified manufacturer

• CE / UL compliance (upon request)

• Factory type test reports available (temperature rise, EMC, insulation, durability)

• Warranty: 12 months, with global technical support

Customer Feedback

“We deployed GROADA RL load banks for generator testing in our European facility. The precision and stability exceeded expectations.” — John M., Germany
“Reliable partner for UPS verification projects. Remote monitoring makes operation much easier.” — David P., UK
