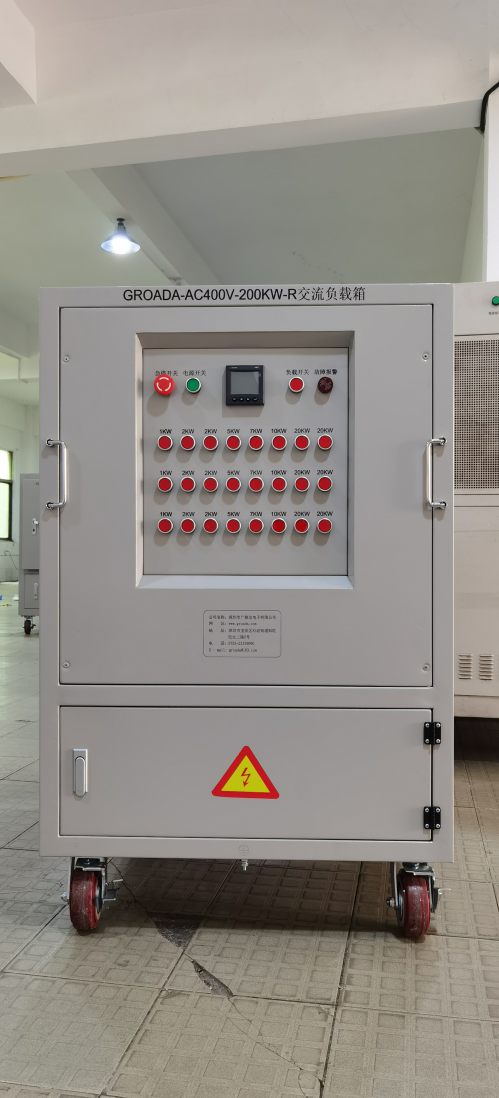

Portable Load Bank Testing for Generator and UPS Systems
Portable load banks are essential tools in the testing and maintenance of power generation systems, including diesel generators, gas turbines, and uninterruptible power supplies (UPS). These devices simulate real-world electrical loads to verify system performance under various operating conditions—ensuring reliability, safety, and compliance with international standards such as IEC 60034-1 and IEEE 115. A well-designed portable load bank allows engineers to conduct factory acceptance tests (FAT), site commissioning, and preventive maintenance without requiring permanent infrastructure.
Resistive load banks are most commonly used for testing generators because they convert electrical energy into heat, mimicking resistive loads like lighting or heating elements. Reactive load banks, on the other hand, introduce inductive or capacitive reactance to evaluate voltage regulation and reactive power handling—critical for grid-connected systems or microgrids. Modern combination (RLC) load banks offer both capabilities in a single unit, enabling comprehensive generator performance validation.
Key technical features include programmable power levels (from 10 kW up to 2 MW), three-phase connectivity, precise measurement accuracy (±0.5% for active and reactive power), and remote monitoring via Modbus or Ethernet interfaces. Safety is ensured through multiple protections: overtemperature sensors, short-circuit protection, emergency stop functions, and CE/UL certification for global use. Cooling methods vary—air-cooled units for smaller setups, water-cooled for high-power continuous testing.
In an anonymized case study at a data center, a 500 kVA portable resistive load bank was used during UPS system commissioning. The test revealed a 3% voltage drop under full load, prompting adjustments to the battery charging algorithm. Another simulated example from wind farm integration showed how a reactive load bank helped validate reactive power compensation before grid synchronization.
For optimal performance, regular calibration (every 12 months) and inspection of resistor blocks and cooling fans are recommended. With robust chassis design (IP54 rating), forklift pockets, and compact transport dimensions, these units support field deployment across industries—from oil & gas to telecom.
