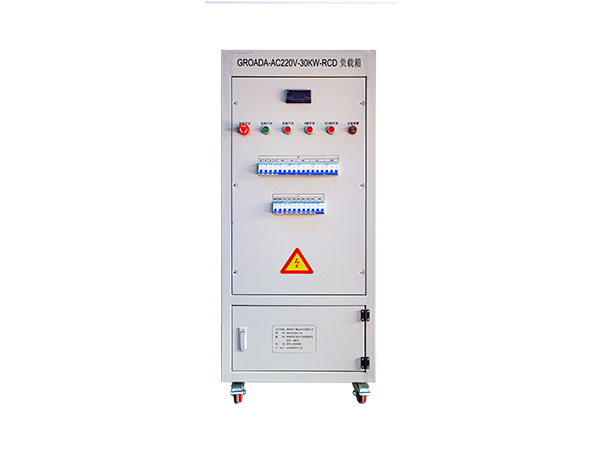

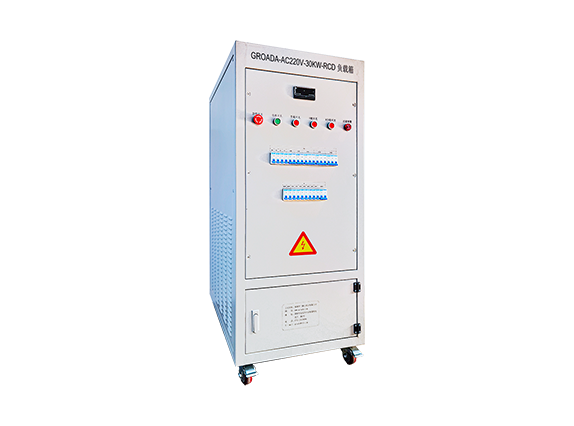

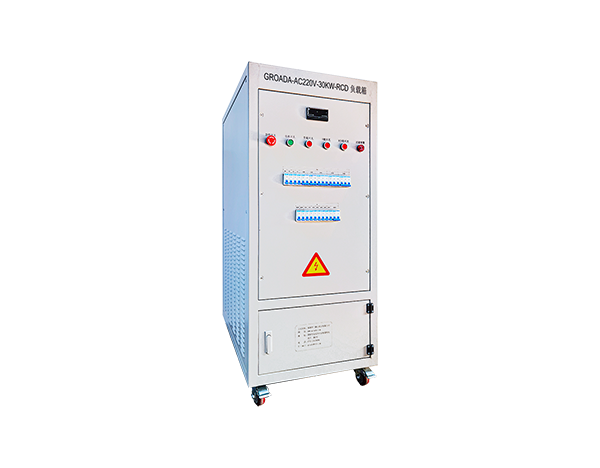

GROADA-AC220V-30KW-RCD inverter load bank

GROADA-AC220V-30KW-RCD Inverter Load Bank: Advanced Testing Solution for Inverter Systems

Product Overview

The GROADA-AC220V-30KW-RCD Inverter Load Bank is a state-of-the-art testing device designed to simulate real-world operational conditions for inverter systems. With a power capacity of 30 kW and operating at 220V AC, this load bank is engineered to assess the performance, efficiency, and safety of inverters under various load scenarios. Its Residual Current Device (RCD) functionality ensures comprehensive testing, making it an indispensable tool for manufacturers, researchers, and maintenance professionals in the power electronics industry.

Key Features

• High Power Capacity: Delivers up to 30 kW of load, suitable for testing large-scale inverter systems.

• RCD Functionality: Equipped with RCD to simulate fault conditions and assess safety mechanisms.

• Adjustable Load Settings: Allows precise control over load levels to simulate different operational scenarios.

• User-Friendly Interface: Features an intuitive control panel for easy operation and monitoring.

• Robust Construction: Built with durable materials to withstand rigorous testing environments.

• Safety Compliance: Meets international safety standards to ensure secure operation.

Applications

• Inverter Testing: Simulates real-world loads to evaluate inverter performance and efficiency.

• RCD Testing: Assesses the functionality of residual current devices in protecting against electrical faults.

• UPS Systems: Tests uninterruptible power supplies under varying load conditions.

• Power Electronics Research: Facilitates research and development in power electronics by providing controlled testing environments.

• Educational Purposes: Serves as a practical tool for training and academic research in electrical engineering.

Technical Specifications

• Rated Power: 30 kW

• Input Voltage: AC 220V

• Frequency: 50 Hz

• Load Type: Resistive-Reactance (RCD)

• Cooling Method: Forced air cooling

• Protection Level: IP65

• Control Mode: Manual with digital display

• Dimensions: Compact design for easy integration into test setups

• Weight: Approximately 150 kg

Compliance and Standards

The GROADA-AC220V-30KW-RCD Inverter Load Bank adheres to international standards such as IEC 61010-1 for safety requirements and IEC 62040-1 for uninterruptible power systems. Its design ensures safe operation and reliable performance in various testing scenarios.

Performance and Reliability

Equipped with advanced features like precise load control and real-time monitoring, this load bank allows for accurate simulation of operational conditions. It supports both steady-state and transient testing, providing valuable data for performance analysis and optimization.

Conclusion

The GROADA-AC220V-30KW-RCD Inverter Load Bank is a versatile and reliable tool for testing inverters and power electronic components. Its robust design, compliance with international standards, and advanced features make it an essential asset for professionals in the field of power electronics.
