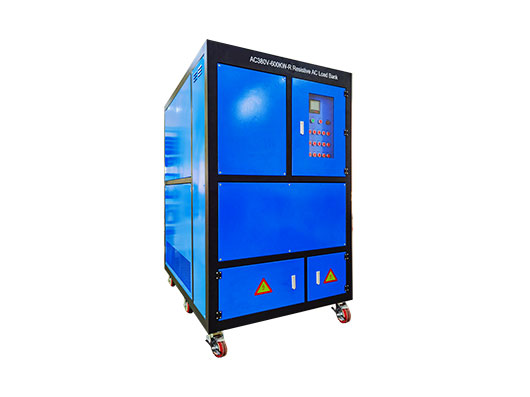

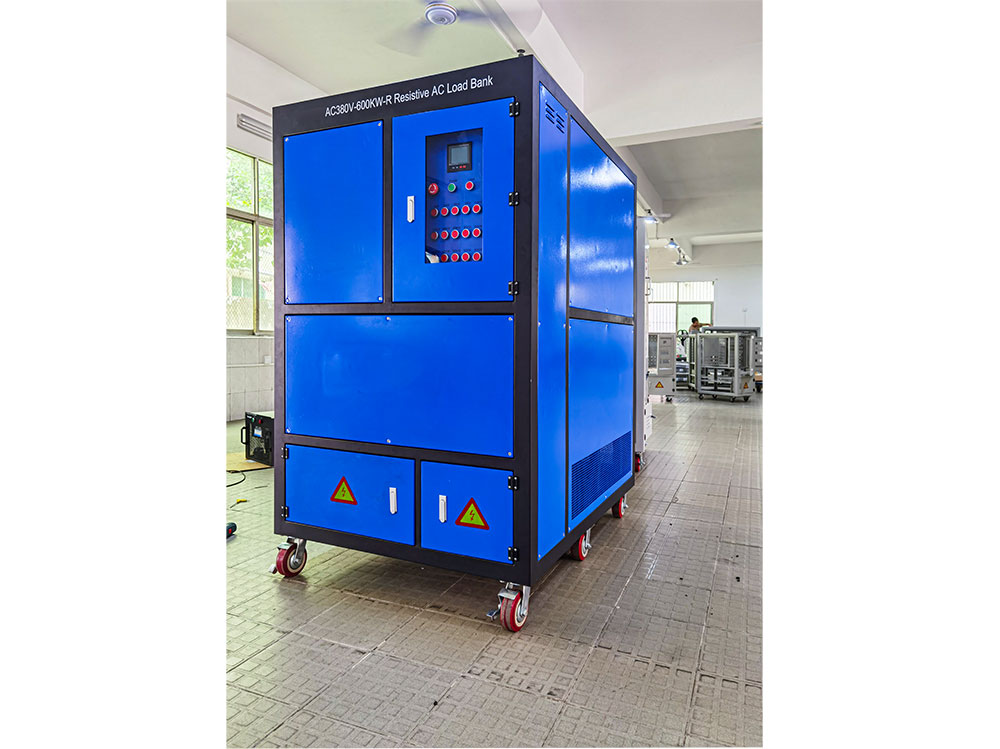

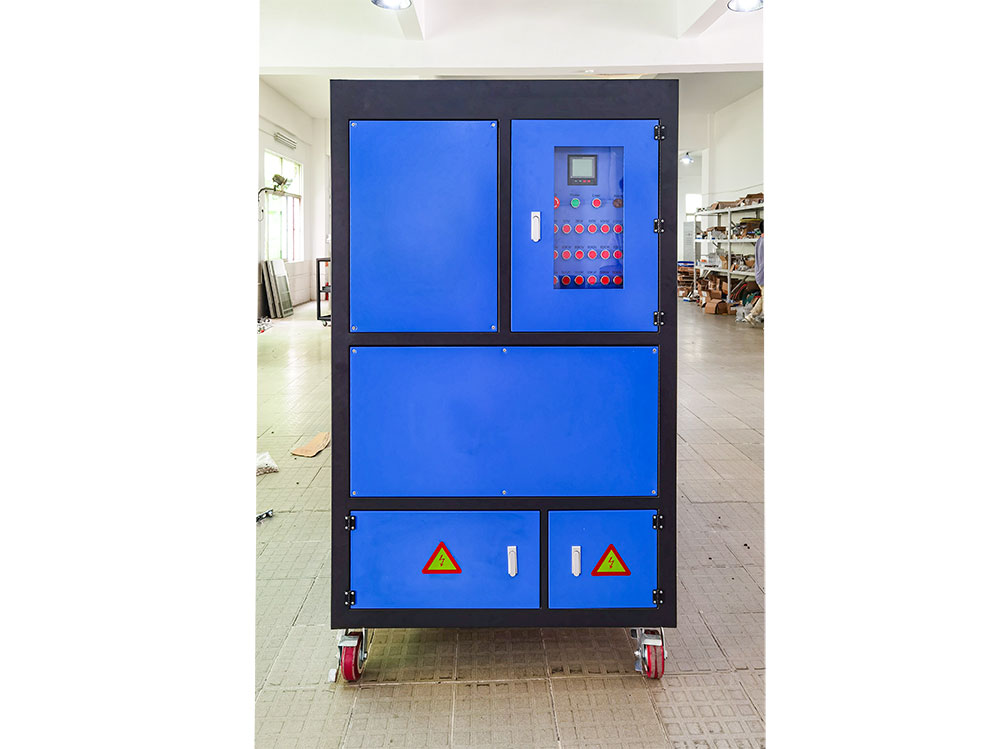

Generator resistance load bank GROADA-AC380V -600kw-RL

The factory provides non-standard load bank customization, welcome to map processing

Guangluda manufacturer advantage:

1. Factory direct sales, no middlemen to earn the difference

2. Fast production speed and short delivery cycle

3. Guangluda load bank equipment is safe to operate, with good stability and low noise.

4. Factory to provide ten years warranty, life-long maintenance services

One: Guanglu up to a variety of regular RL load bank product parameters:

Test function

1. Steady-state measurement: three-phase voltage, three-phase current, active power, reactive power, apparent power, power factor, frequency, power running time, voltage imbalance

2. Band load function: it can realize automatic loading and unloading functions from 0%, 25%, 50%, 75%, 100, 110 and other power segments

3. Sudden and sudden unloading test: can capture transient voltage, maximum frequency, minimum current and recovery time

4. Setting test: can capture the voltage, frequency setting maximum value, minimum value, can calculate the relative voltage, frequency setting rise, fall range and adjustment rate

5. Volatility test: can capture the maximum and minimum values of voltage and frequency fluctuations, and can calculate the steady-state frequency band, steady-state voltage deviation, voltage modulation, fluctuation rate and frequency.

6. Harmonic analysis: 2-50 harmonics, and its total harmonics; recording 5 modes to record the voltage real-time waveform, recording time 5 seconds to 5 minutes

Control mode

MODE1, touch screen hand automatic control

MODE2, computer software control (using WENSHIN load intelligent test software control)

MODE3, RS485 communication (MODBUS RTU communication protocol is provided to meet automatic integration test) (default is local touch screen control, users can choose MDE2 or MODE3)

Loading mode

Steady-state loading: preset a test value and test time, and carry out load test according to the set value

Transient loading: preset a test value to complete sudden loading and sudden unloading load tests

Band loading: preset multiple test values and test time, automatic load test according to the setting process

automatic power compensation

The system automatically tracks the online test power and realizes high-precision load test through automatic compensation of the program.

Automatic start and stop of fan

After the test, the fan keeps running and automatically shuts down after the internal preheating of the device is dispersed.

fan automatic speed regulation

The size of the fan fan test power value automatically adjusts the air volume to make the low-power test quieter

Protection function

Over-voltage, fan fault, over-temperature protection, short-circuit protection, phase sequence protection

Data storage function

The system can record on-line test voltage, current, power and other parameters. The test data can be stored in EXCEL form and exported through U disk for in-depth analysis.

Extended Interface

MODBUS RTU RS485, RS232, Ethernet port, CAN (default 485, optional according to requirements)
