Model	AC220V-6KW-R	AC380V-30KW-R	AC380V-60KW-R	AC380V-100KW-R	AC380V-200KW-R	AC380V-400KW-R	AC380V-500KW-R	AC380V-1000KW-R
Rated power	0-6KW	0-30KW	0-60KW	0-100KW	0-200KW	0-400KW	0-500KW	0-1000KW
Size (width * depth * height mm)	480*600*277	500*750*1000	600*850*1000	600*850*1400	700*1000*1650	1100*1400*1700	1100*1400*1800	1500*1800*2000
Weight	25KG	80KG	130KG	180KG	250KG	550KG	650KG	1100KG
Input current	0-30A	0-45A	0-90A	0-150A	0-300A	0-600A	0-750A	0-1500A
Minimum loading	100W	100W	500W	1KW	1KW	5KW	10KW	50KW
	Other minimum loading power can be customized according to requirements
Input voltage	AC220/230V	AC380/400V
	Other input voltage can be customized according to requirements
Power	PF=1.0
Overall accuracy	3% (other accuracy requirements can be customized according to requirements)
Control mode	Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required)
Remote Interface	RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements)
Protection function	Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume)
Working power supply	AC220V				AC220V/380V	AC380V
Display accuracy	0.5 level (other explicit precision can be customized according to requirements
Display parameters	Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements)
Cold sure way	Forward and out	Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements)
Protection level	IP20 (other protection level can be customized according to requirements)
Appearance color	RAL7035 (other colors can be customized according to requirements)
Working temperature	-10 ℃ ~ 55 ℃
Relative humidity	≤95%RH
Altitude	≤ 2500 m

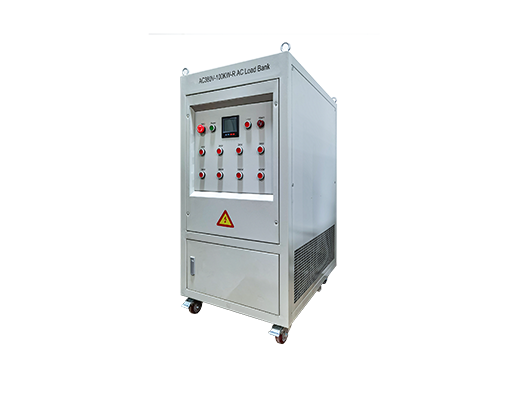

GROADA High-Performance Load Bank

Product Overview

The GROADA High-Performance Load Bank is designed to simulate electrical loads for testing and validating power systems. Widely used in generators, UPS systems, battery banks, and other power equipment, our load banks ensure reliability and stability under various operating conditions. Engineered for precision, they provide accurate load simulation for both AC and DC systems.

Technical Specifications

• Power Range: From 10 kW to 5000 kW, suitable for small to large-scale testing needs.

• Load Types: Supports resistive (R), inductive (L), capacitive (C), RL, and RLC loads, as well as constant current, constant voltage, and constant power modes.

• Control System: Advanced digital control technology enables remote monitoring, real-time adjustments, and precise load regulation.

• Safety Features: Includes overload protection, overtemperature alarms, and automatic shutdown for enhanced operational safety.

• Connectivity: Supports remote control via Ethernet, RS485, and optional wireless monitoring.

Applications

• Data Centers: Test UPS and backup power systems under high loads to ensure system reliability and uptime.

• Generator Sets: Simulate real-world electrical loads to validate generator performance and efficiency.

• Renewable Energy Systems: Evaluate solar and wind power system output, ensuring optimal performance and energy efficiency.

• Industrial Power Testing: Validate electrical distribution systems, motor drives, and battery storage units.

Industry Trends

According to recent industry research, the global load bank market is growing rapidly, driven by increasing demand in data centers, renewable energy systems, and industrial power testing. GROADA load banks integrate cutting-edge technology to meet these evolving requirements.

Customer Case Study

XYZ Data Center, USA: Implemented GROADA load banks to perform comprehensive UPS system testing. The solution ensured stability under peak loads, improved system reliability, and reduced downtime risks.

ABC Renewable Energy Company, Germany: Used GROADA load banks to simulate variable solar and wind loads, optimizing system performance and validating energy storage solutions.

Why Choose GROADA Load Banks

• Reliable & Accurate: Precise load simulation ensures accurate testing results.

• Advanced Technology: Digital control, remote monitoring, and smart automation.

• Global Reach: Trusted by customers across Europe, North America, and Asia.

• Customizable Solutions: Tailored load bank configurations to meet specific testing requirements.

Get in Touch

Contact us today to learn more about GROADA Load Banks, request a quote, or discuss your specific testing needs.
