Industrial Testing Equipment

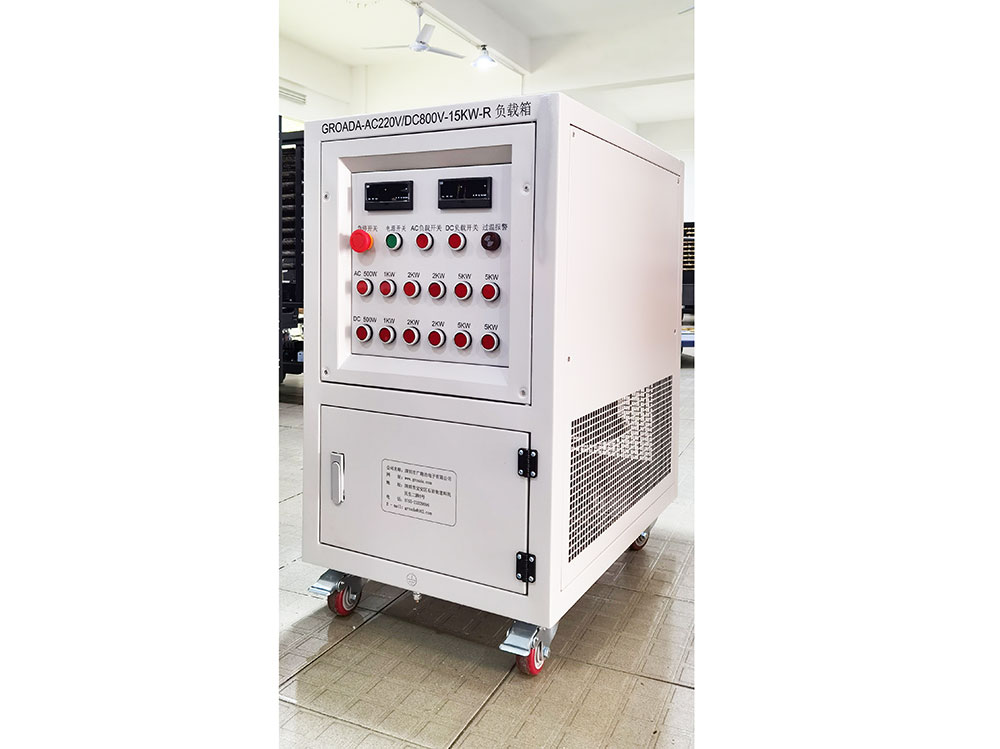

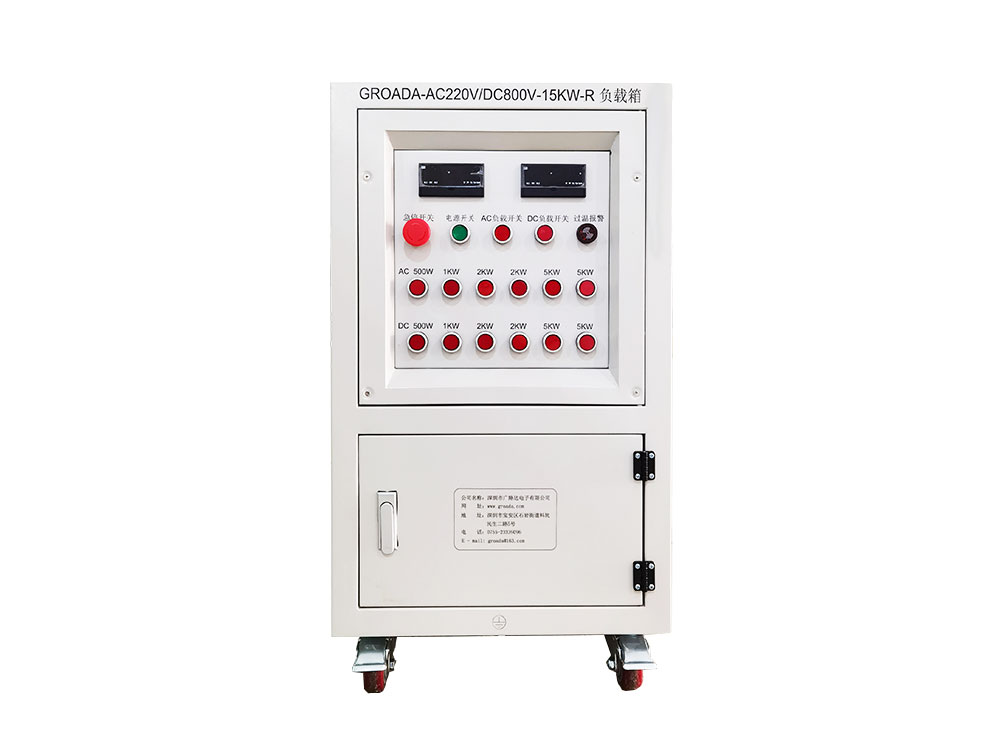

GROADA-AC220V-15KW-R resistive load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||
GROADA-AC220V-15KW-R Resistive Load Bank: Reliable Power Testing for Critical Applications
🔌 Product Overview
The GROADA-AC220V-15KW-R Resistive Load Bank is engineered to simulate real-world electrical loads, enabling precise testing and maintenance of backup power systems. With a capacity of 15 kW, this load bank is ideal for evaluating the performance and reliability of generators, uninterruptible power supplies (UPS), and other critical power sources under controlled conditions.
✅ Key Features
-
High Power Capacity: Supports up to 15 kW, suitable for testing medium-sized generators and UPS systems.
-
Purely Resistive Load: Provides a stable and predictable load, ensuring accurate performance assessments.
-
Compact Design: Facilitates easy integration into various testing environments, including laboratories and field sites.
-
User-Friendly Interface: Equipped with intuitive controls for straightforward operation and monitoring.
-
Robust Construction: Built to withstand demanding testing conditions, ensuring longevity and reliability.
🏭 Applications
-
Generator Testing: Verify the operational capacity and efficiency of diesel and gas generators.
-
UPS Systems: Assess the performance of uninterruptible power supplies in data centers and critical infrastructure.
-
Power Grid Maintenance: Simulate loads to test and calibrate equipment in power distribution networks.
-
Renewable Energy Systems: Evaluate the integration and performance of renewable energy sources in hybrid systems.
📈 Industry Insights
The global load bank market is projected to grow at a compound annual growth rate (CAGR) of 6.2% from 2024 to 2032, reaching an estimated value of $524.1 million by 2032. This growth is driven by increasing industrialization, the expansion of renewable energy sources, and the rising demand for reliable backup power systems across various sectors.
In particular, the Asia-Pacific region is expected to dominate the market, accounting for over 37% of the total revenue by 2032, due to rapid industrialization and infrastructure development in countries like China and India.
🛠️ Technical Specifications
-
Input Voltage: AC 220V
-
Power Rating: 15 kW
-
Load Type: Resistive
-
Cooling Method: Air-cooled
-
Control Interface: Digital display with manual and remote operation capabilities
-
Safety Features: Overload protection, short circuit detection, and thermal shutdown
🌍 Why Choose GROADA?
GROADA is a trusted manufacturer specializing in high-quality load banks designed to meet the rigorous demands of modern power testing. Our products are built with precision engineering, ensuring accuracy, durability, and compliance with international standards. By choosing GROADA, you invest in reliable solutions that enhance the performance and longevity of your power systems.
