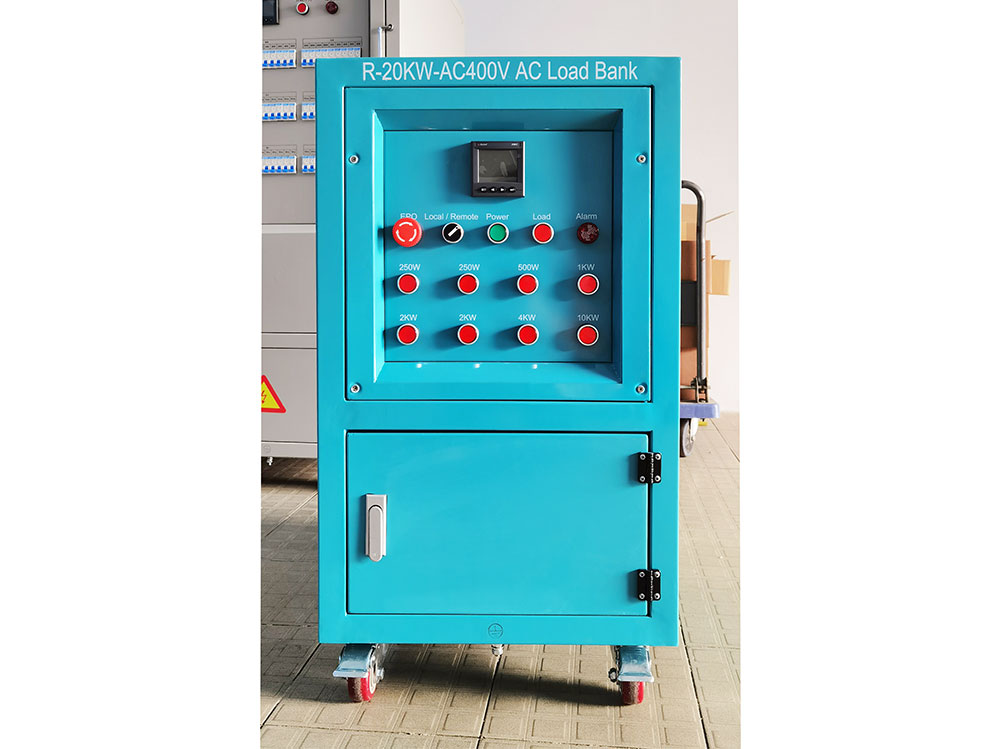

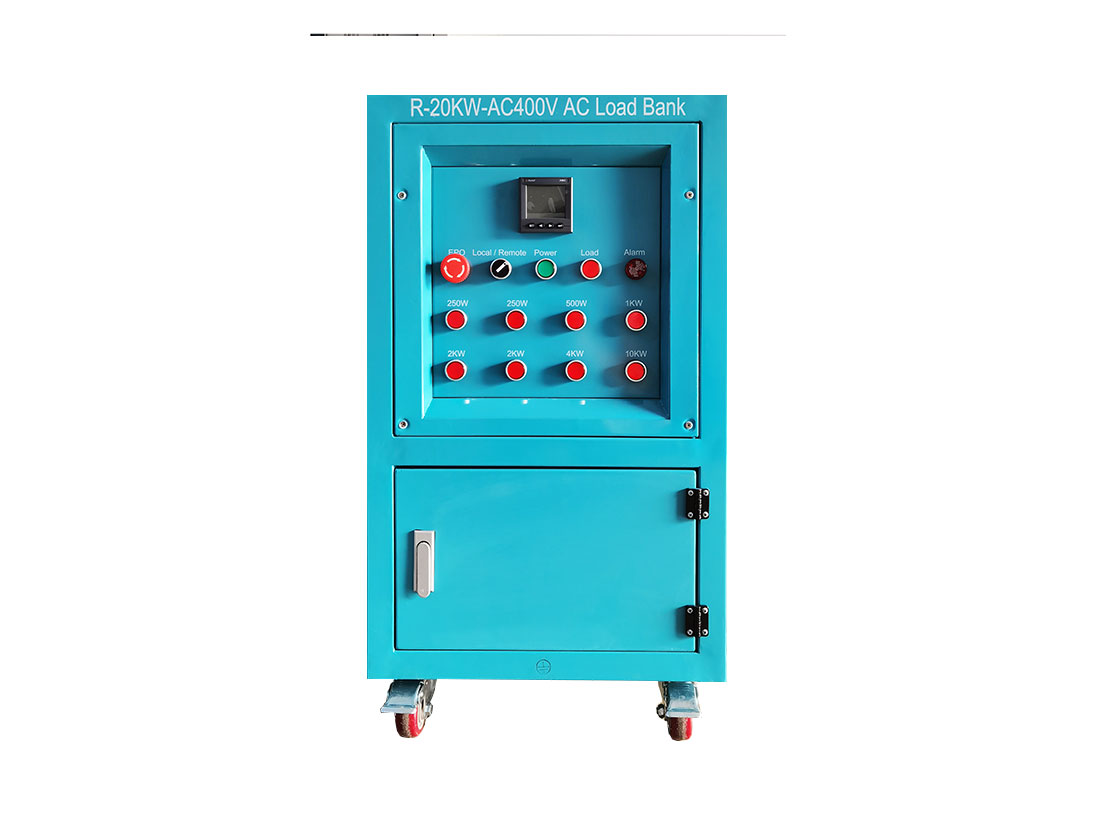

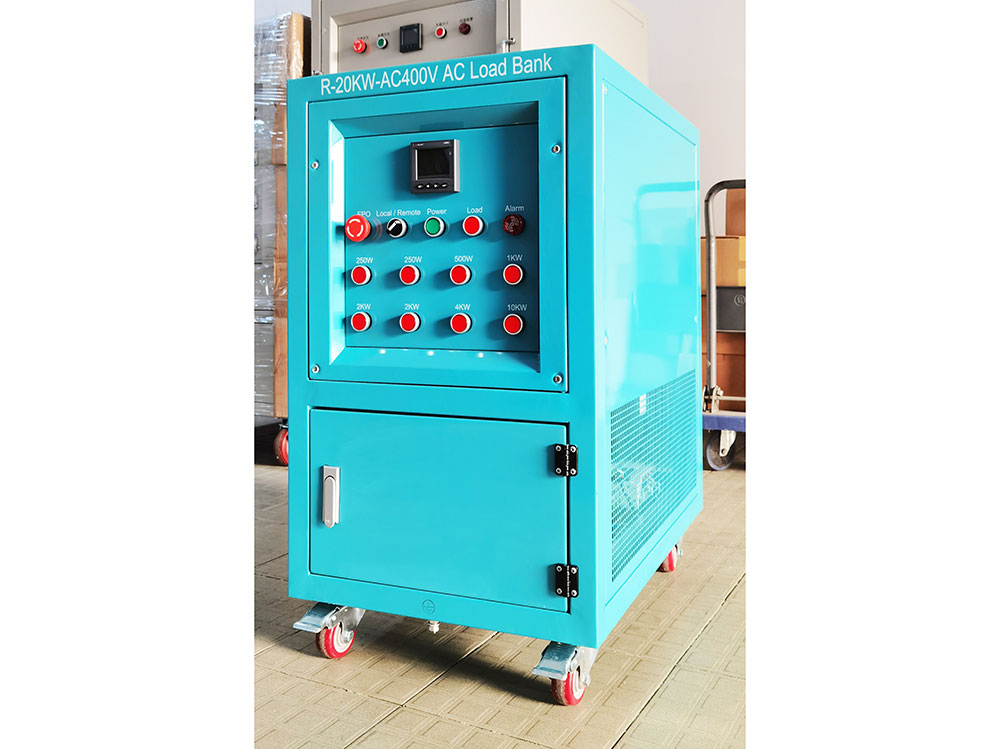

GROADA-AC400V-20KW-R resistance load bank

The GROADA-AC400V-20KW-R resistance load bank is a device that can simulate the resistance load in real life and provide a strict test mechanism for the power supply from 1kW to 135KW. The "load" of a resistive load bank is generated by the conversion of electrical energy into thermal energy by a power resistor. It is mainly used for testing and maintenance of engine generators, battery systems, UPS systems, inverters, ground power devices, auxiliary power devices, aviation generators, wind turbines, hydraulic generators, etc.

Resistance load bankes are available for permanent installation either fixed or portable (Portable Load Bank) with lifting lugs and casters. Larger load bankes (typically over 1250kW) are based on ISO container structures. Special finishes can be provided, including custom paint colors and stainless steel housing.

GROADA-AC400V-20KW-R product features:

1. Control mode:(1) Local manual control panel (2) Remote manual control box (3) Remote console (including manual panel and PC control)(4) Laptop control

2. Protection function: overvoltage, overcurrent, overheating, low air volume, fan overheating, fan phase sequence reverse connection protection, smoke alarm, etc.

3. Cooling: industrial heavy-duty fan, horizontal air inlet, upward air outlet, low noise.

4. Power consumption components: made of special alloy resistance, high temperature resistance, strong heat dissipation capacity, high thermal stability, no open flame, safe and reliable. The operating temperature is 1/3 of the rated value.

5. All-weather structure: The container structure provides super protection, and the protection level is higher than IP55.

6. Material and coating: The body is made of cold-rolled steel plate, which is treated by galvanized anti-corrosion, plastic spraying and painting.

7. Integrated and modular design: convenient installation, maintenance and transportation.

GROADA-AC400V-20KW-R specifications:
