Industrial Testing Equipment

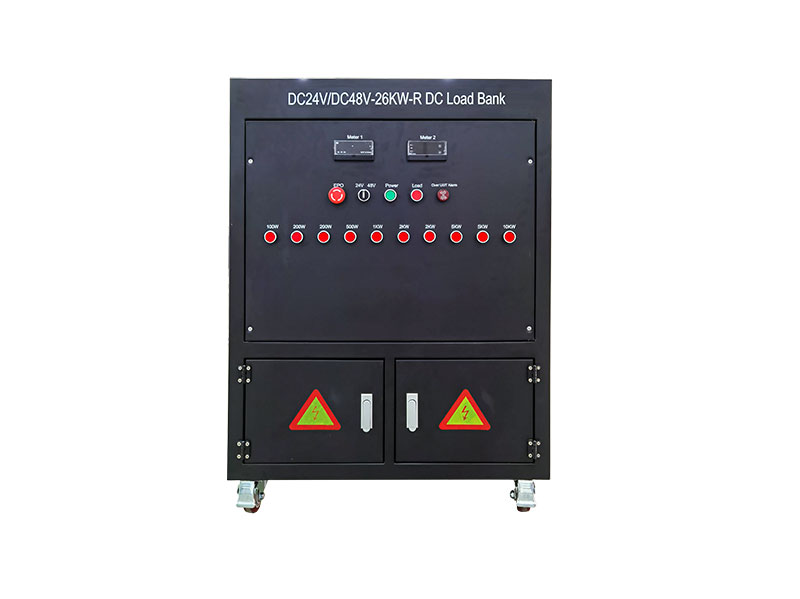

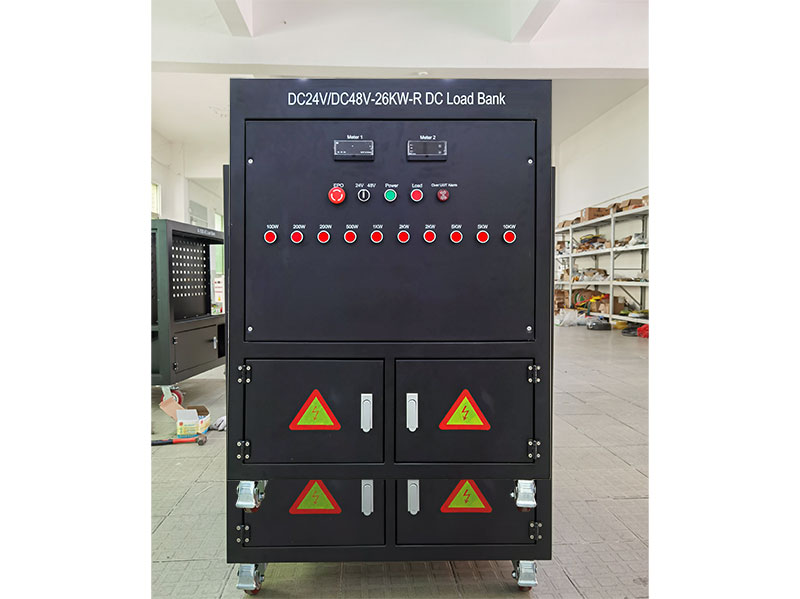

GROADA-DC24V/DC48V-26KW-R load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
Introduction
The DC automatic load group (ie battery discharger, battery load group, battery discharge tester) is designed for capacity testing and maintenance of continuous battery packs through centralized discharge.The device has LED display, timing function and automatic low voltage protection function;Battery capacity test automatic constant current control.
Main features
1).Display: LED real-time display of all parameters and test data, English menu.Display test data: voltage, current, capacity, discharge time, etc.
2).Control mode: keyboard set the whole battery set protection voltage, current, capacity, discharge time.
3).Automatic stop: The test can be automatically stopped when the following conditions are met: test timeout, test capacity exhaustion, and protection voltage exhaustion.
4).Protection: perfect automatic protection and alarm function: when the temperature is too high, the reverse automatic protection is cut off and an alarm sound is issued.
5).Power consumption using special alloy resistance, temperature drift small, patented technology design, high power density, safety.
6).Portable, small size, forced air cooling.
| Model | GROADA-DC48V-R | GROADA-DC60V-R | GROADA-DC110V-R | GROADA-DC220V-R | GROADA-DC500V-R | GROADA-DC750V-R | GROADA-DC1000V-R |
| Rated current | 0 ~ 5000A | ||||||
| Input voltage | 0~1500V | ||||||
| Minimum loading | 0.1A | ||||||
| Other minimum loading can be customized according to requirements | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | ||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | ||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | ||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | ||||||
| Working power supply | GROADA/AC380V | ||||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | ||||||
| Display parameters | Voltage, current, power, etc. | ||||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | ||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | ||||||
| Working temperature | -10 ℃ ~ 55 ℃ | ||||||
| Relative humidity | ≤95%RH | ||||||
| Altitude | ≤ 2500 m | ||||||
