Industrial Testing Equipment

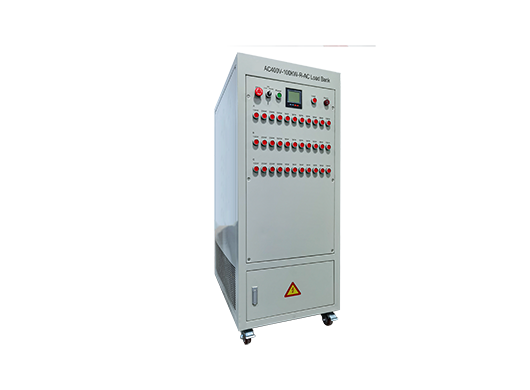

GROADA-AC400V-100KW-R resistance load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||
GROADA-AC400V-100KW-R Resistive Load Bank: Precision Testing for Generator Reliability
Overview
The GROADA-AC400V-100KW-R resistive load bank is engineered to deliver accurate and controlled testing for three-phase AC generators operating at 400V. With a robust 100 kW capacity, this load bank is designed to simulate real-world electrical loads, ensuring that generators perform optimally during critical power outages.
Key Features
-
High Power Capacity: Supports up to 100 kW, accommodating a wide range of generator sizes and ensuring comprehensive testing.
-
Three-Phase Testing: Ideal for industrial and commercial generators operating at 400V, providing balanced load conditions.
-
Precision Control: Offers fine-tuned load adjustments to simulate various operational scenarios, from light to full-load conditions.
-
Durable Construction: Built with high-quality materials to withstand rigorous testing environments and ensure longevity.
-
User-Friendly Interface: Equipped with intuitive controls and clear displays for ease of operation.
Applications
-
Generator Performance Testing: Verify that generators can handle their rated capacity and perform under load conditions.
-
Preventive Maintenance: Identify potential issues before they lead to failures, reducing downtime and repair costs.
-
Compliance Testing: Meet industry standards and regulations by conducting thorough load testing procedures.
-
Training and Simulation: Provide realistic training scenarios for personnel to enhance operational readiness.
Industry Significance
Regular load bank testing is a critical component of generator maintenance programs. It ensures that generators can operate at full capacity, preventing issues like "wet stacking" and carbon buildup, which can degrade performance over time. According to industry standards, such as NFPA 110, generators should undergo load testing at least annually to confirm their reliability during emergencies.
The global generator load testing market is experiencing significant growth, driven by increasing demand for reliable power in critical applications and stringent regulations on power safety. In 2023, the market size was valued at approximately USD 1.2 billion and is expected to reach around USD 2.4 billion by 2032, growing at a CAGR of 7.6% during the forecast period.
Why Choose GROADA-AC400V-100KW-R?
-
Reliability: Designed to deliver consistent and accurate load testing results, ensuring generator reliability.
-
Efficiency: Streamlines the testing process, saving time and resources compared to traditional methods.
-
Compliance: Helps meet industry standards and regulations, ensuring operational readiness.
-
Support: Backed by GROADA's commitment to quality and customer satisfaction, with comprehensive support services available.
Incorporating the GROADA-AC400V-100KW-R resistive load bank into your generator maintenance program enhances the reliability and performance of your power systems, ensuring they are prepared for critical operations when needed most.
