Industrial Testing Equipment
GROADA-AC220V-4KW-R rack load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||

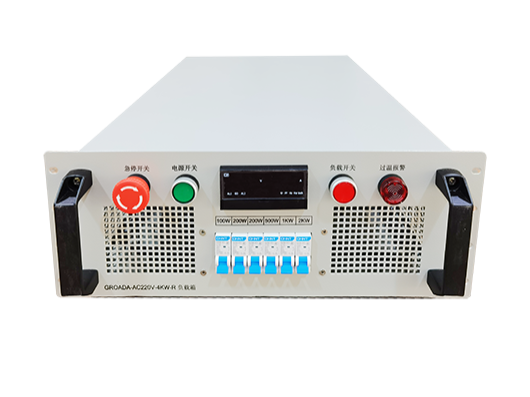

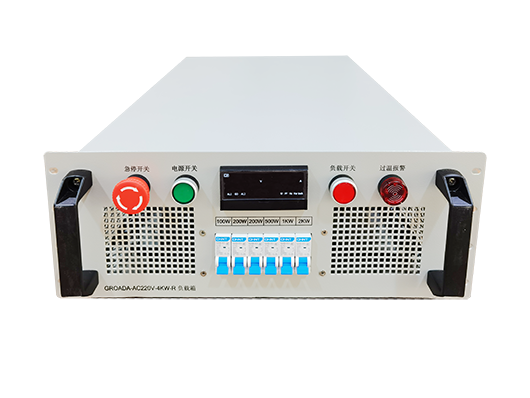

GROADA AC220V-4KW-R Rack-Mounted Load Bank: Precision Power Testing for Critical Infrastructure
🔍 Product Overview
The GROADA AC220V-4KW-R is a high-performance, rack-mounted resistive load bank designed to simulate real-world electrical loads for testing and maintenance purposes. With a power capacity of 4 kW and compatibility with 220V AC systems, it is an ideal solution for data centers, uninterruptible power supply (UPS) systems, and other critical infrastructure requiring reliable power testing.
⚙️ Technical Specifications
-
Power Capacity: 4 kW resistive load
-
Voltage: 220V AC
-
Phase Configuration: Single-phase
-
Control Interface: Digital display with manual and automatic control options
-
Cooling Method: Forced air cooling
-
Protection Features: Over-temperature and over-current protection
-
Mounting: Standard 19-inch rack-mounted design
🛠️ Key Features
-
Compact and Space-Saving Design: The 19-inch rack-mountable form factor allows for efficient use of space in equipment rooms and data centers.
-
Precise Load Simulation: Accurately simulates resistive loads to test power systems under realistic operating conditions.
-
User-Friendly Interface: The digital control panel provides easy operation and monitoring of load settings.
-
Enhanced Safety: Equipped with over-temperature and over-current protection mechanisms to safeguard both the load bank and the connected equipment.
🏢 Applications
The AC220V-4KW-R load bank is suitable for various applications, including:
-
Data Center Testing: Simulate server loads to assess power distribution and cooling efficiency.
-
UPS Systems Testing: Verify the performance and reliability of uninterruptible power supplies.
-
Generator Load Testing: Ensure generators can handle expected loads during power outages.
-
Telecommunications Infrastructure: Test backup power systems to maintain continuous service.
📈 Market Insights
The global load bank market is projected to grow from $300.19 million in 2025 to $387.15 million by 2032, at a compound annual growth rate (CAGR) of 3.70% during the forecast period This growth is driven by the increasing demand for reliable power systems in sectors such as data centers, renewable energy, and telecommunications. Rack-mounted load banks, like the AC220V-4KW-R, are gaining popularity due to their space-saving design and ease of integration into existing infrastructure.
✅ Why Choose GROADA AC220V-4KW-R?
-
Reliability: Built with high-quality components to ensure consistent performance.
-
Ease of Integration: The standard rack-mounted design simplifies installation in existing setups.
-
Cost-Effective Solution: Provides accurate load simulation without the need for large, expensive equipment.
-
Comprehensive Support: GROADA offers full technical support and service to assist with setup and maintenance.
