Industrial Testing Equipment
GROADA-DC1500V-5KW-R rack load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | GROADA-DC48V-R | GROADA-DC60V-R | GROADA-DC110V-R | GROADA-DC220V-R | GROADA-DC500V-R | GROADA-DC750V-R | GROADA-DC1000V-R |
| Rated current | 0 ~ 5000A | ||||||
| Input voltage | 0~1500V | ||||||
| Minimum loading | 0.1A | ||||||
| Other minimum loading can be customized according to requirements | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | ||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | ||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | ||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | ||||||
| Working power supply | GROADA/AC380V | ||||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | ||||||
| Display parameters | Voltage, current, power, etc. | ||||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | ||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | ||||||
| Working temperature | -10 ℃ ~ 55 ℃ | ||||||
| Relative humidity | ≤95%RH | ||||||
| Altitude | ≤ 2500 m | ||||||

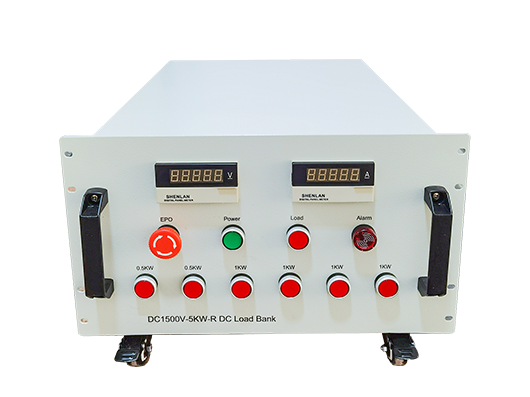

GROADA-DC1500V-5KW-R Rack-Mounted Load Bank
High-Voltage DC Testing Solution for Critical Power Systems🔍Product Overview
TheGROADA-DC1500V-5KW-Ris a high-performance, rack-mounted DC load bank engineered to simulate real-world electrical loads in high-voltage DC applications. With a power rating of 5 kW and a voltage capacity of up to 1500V DC, it is ideal for testing and commissioning high-voltage DC systems such as those found in renewable energy installations, electric vehicle charging stations, and large-scale battery storage systems.
⚙️ Key Features
High Voltage Capability: Supports up to 1500V DC, accommodating a wide range of high-voltage applications.
Adjustable Load Steps: Allows precise simulation of varying load conditions, essential for thorough testing.
Rack-Mountable Design: Fits standard 19-inch server racks, optimizing space utilization in test environments.
Comprehensive Protection Mechanisms: Equipped with overcurrent, overvoltage, and thermal protection to ensure safe operation.
User-Friendly Interface: Features intuitive controls and monitoring systems for ease of use during testing procedures.
🛠️ Applications
Renewable Energy Systems: Testing of photovoltaic (PV) inverters and battery storage systems to ensure efficient energy conversion and storage.
Electric Vehicle Charging Infrastructure: Simulating load conditions to verify the performance and safety of charging stations.
Battery Storage Systems: Assessing the reliability and efficiency of large-scale battery storage solutions.
UPS Systems: Validating the performance of uninterruptible power supplies in critical applications.
📊Technical Specifications
| Specification | Details |
|---|---|
| Model | GROADA-DC1500V-5KW-R |
| Input Voltage | Up to 1500V DC |
| Load Capacity | 5 kW |
| Mounting | 19-inch rack-mountable |
| Cooling Method | Forced air with internal fan |
| Protection Features | Overcurrent, overvoltage, thermal protection |
| Control Interface | Digital display with manual and remote control options |
✅Compliance and Standards
TheGROADA-DC1500V-5KW-Rload bank complies with international standards, ensuring reliable and safe operation in various high-voltage DC applications. It is essential to consult specific industry standards and regulations to ensure compliance during testing procedures.
📈Industry Insights
As the demand for renewable energy and electric vehicle infrastructure grows, the need for reliable testing equipment becomes paramount.GROADA-DC1500V-5KW-Rload bank addresses this need by providing a versatile and safe solution for high-voltage DC system testing. Its rack-mounted design and comprehensive protection features make it an invaluable tool for engineers and technicians in the field.
🧪Why Choose the GROADA-DC1500V-5KW-R?
High Voltage Testing: Capable of handling up to 1500V DC, suitable for a wide range of high-voltage applications.
Precision Load Simulation: Allows for precise simulation of varying load conditions, essential for thorough testing.
Space-Efficient Design: Rack-mountable design optimizes space utilization in test environments.
Comprehensive Protection: Equipped with overcurrent, overvoltage, and thermal protection to ensure safe operation.
User-Friendly Interface: Intuitive controls and monitoring systems for ease of use during testing procedures.
For more information onGROADA-DC1500V-5KW-Rrack-mounted load bank and its applications, please refer to the product specifications and consult with industry professionals to ensure it meets your specific testing requirements.
