Industrial Testing Equipment
GROADA-DC200V-60KW-R Load Bank Factory
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | GROADA-DC48V-R | GROADA-DC60V-R | GROADA-DC110V-R | GROADA-DC220V-R | GROADA-DC500V-R | GROADA-DC750V-R | GROADA-DC1000V-R |
| Rated current | 0 ~ 5000A | ||||||
| Input voltage | 0~1500V | ||||||
| Minimum loading | 0.1A | ||||||
| Other minimum loading can be customized according to requirements | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | ||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | ||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | ||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | ||||||
| Working power supply | GROADA/AC380V | ||||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | ||||||
| Display parameters | Voltage, current, power, etc. | ||||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | ||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | ||||||
| Working temperature | -10 ℃ ~ 55 ℃ | ||||||
| Relative humidity | ≤95%RH | ||||||
| Altitude | ≤ 2500 m | ||||||

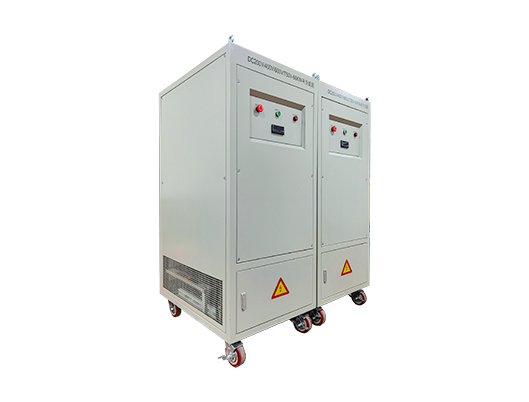

GROADA DC Load Bank 200V/60kW-R
Precision Testing Solution for Critical DC Power Systems
Overview
The GROADA DC Load Bank 200V/60kW-R is a high-performance, precision-engineered testing solution designed to simulate real-world load conditions for direct current (DC) power systems. With a maximum power rating of 60 kW at 200V DC, this load bank ensures reliable performance assessment and validation for critical infrastructure components, including:
-
Batteries
-
Uninterruptible Power Supplies (UPS)
-
DC power converters
-
Renewable energy systems
It is an ideal solution for industries requiring accurate, safe, and repeatable load testing, such as telecommunications, data centers, utilities, and military applications.
Key Features
-
High Power Capacity
Supports up to 60 kW of resistive load at 200V DC, enabling a wide range of testing scenarios. -
Precise Load Simulation
Accurate load application ensures comprehensive testing of DC power sources, simulating real operational conditions. -
Durable Construction
Built with premium-quality materials to withstand demanding environments and long-term operation. -
User-Friendly Interface
Equipped with intuitive controls for effortless operation and real-time monitoring. -
Safety Compliance
Manufactured according to international safety standards, protecting both operators and equipment.
Applications
The GROADA DC Load Bank is highly versatile and suitable for multiple applications, including:
-
Battery Capacity Testing
Assess the performance, endurance, and lifespan of various battery systems. -
UPS System Validation
Test and verify UPS functionality under full-load conditions, ensuring backup power reliability. -
Power Supply Evaluation
Measure DC power supply output and stability to maintain operational safety. -
Renewable Energy Systems
Simulate load conditions for solar, wind, and hybrid energy systems, validating integration and efficiency. -
Electric Vehicle (EV) Charging Infrastructure
Test the load-handling capability of EV chargers and stations under variable conditions.
Industry Standards & Compliance
The GROADA DC Load Bank meets or exceeds international industry standards, including:
-
IEC 62040 – Uninterruptible power systems
-
IEEE 1547 – Interconnection of distributed energy resources
-
NFPA 110 – Emergency and standby power systems
-
ISO 8528 – Reciprocating internal combustion engine-driven generating sets
These certifications guarantee reliability, safety, and consistent performance across diverse testing scenarios.
Why Choose GROADA?
-
Proven Expertise
Years of experience in DC power testing solutions ensures high-quality, reliable products. -
Customization Options
Tailor-made solutions to match specific operational requirements and environments. -
Comprehensive Support
Full-service support includes installation, training, and maintenance to optimize performance. -
Continuous Innovation
Advanced technology development to meet evolving industry demands.
Contact Information
For inquiries or quotations:
-
Email: groada@163.com
-
Phone: +86 755 2333 9096
-
Website: www.groadacn.com
GROADA is committed to delivering high-quality DC load testing solutions that guarantee the safety, reliability, and performance of your power systems.
