Industrial Testing Equipment
GROADA-DC110V-30KW-R Load Bank Manufacturer
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | GROADA-DC48V-R | GROADA-DC60V-R | GROADA-DC110V-R | GROADA-DC220V-R | GROADA-DC500V-R | GROADA-DC750V-R | GROADA-DC1000V-R |
| Rated current | 0 ~ 5000A | ||||||
| Input voltage | 0~1500V | ||||||
| Minimum loading | 0.1A | ||||||
| Other minimum loading can be customized according to requirements | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | ||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | ||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | ||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | ||||||
| Working power supply | GROADA/AC380V | ||||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | ||||||
| Display parameters | Voltage, current, power, etc. | ||||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | ||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | ||||||
| Working temperature | -10 ℃ ~ 55 ℃ | ||||||
| Relative humidity | ≤95%RH | ||||||
| Altitude | ≤ 2500 m | ||||||

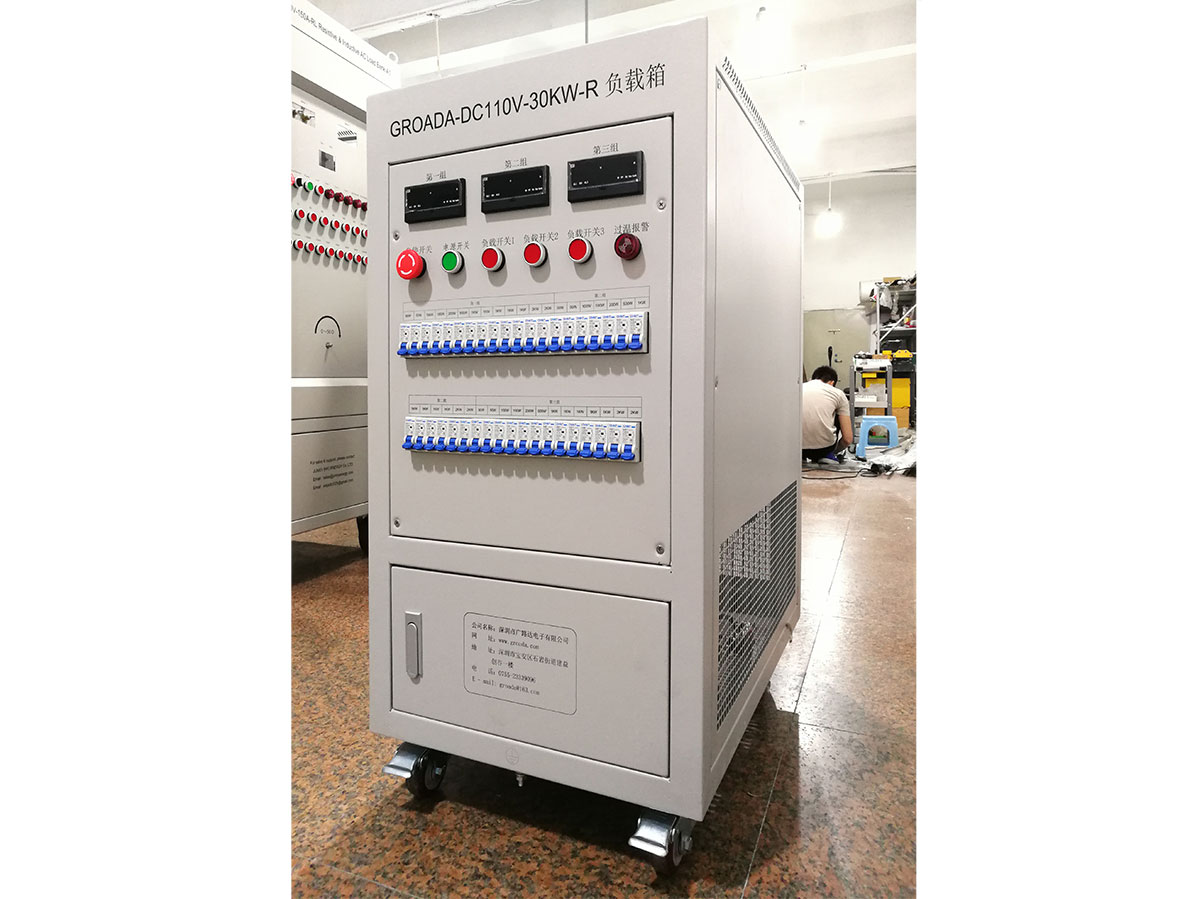

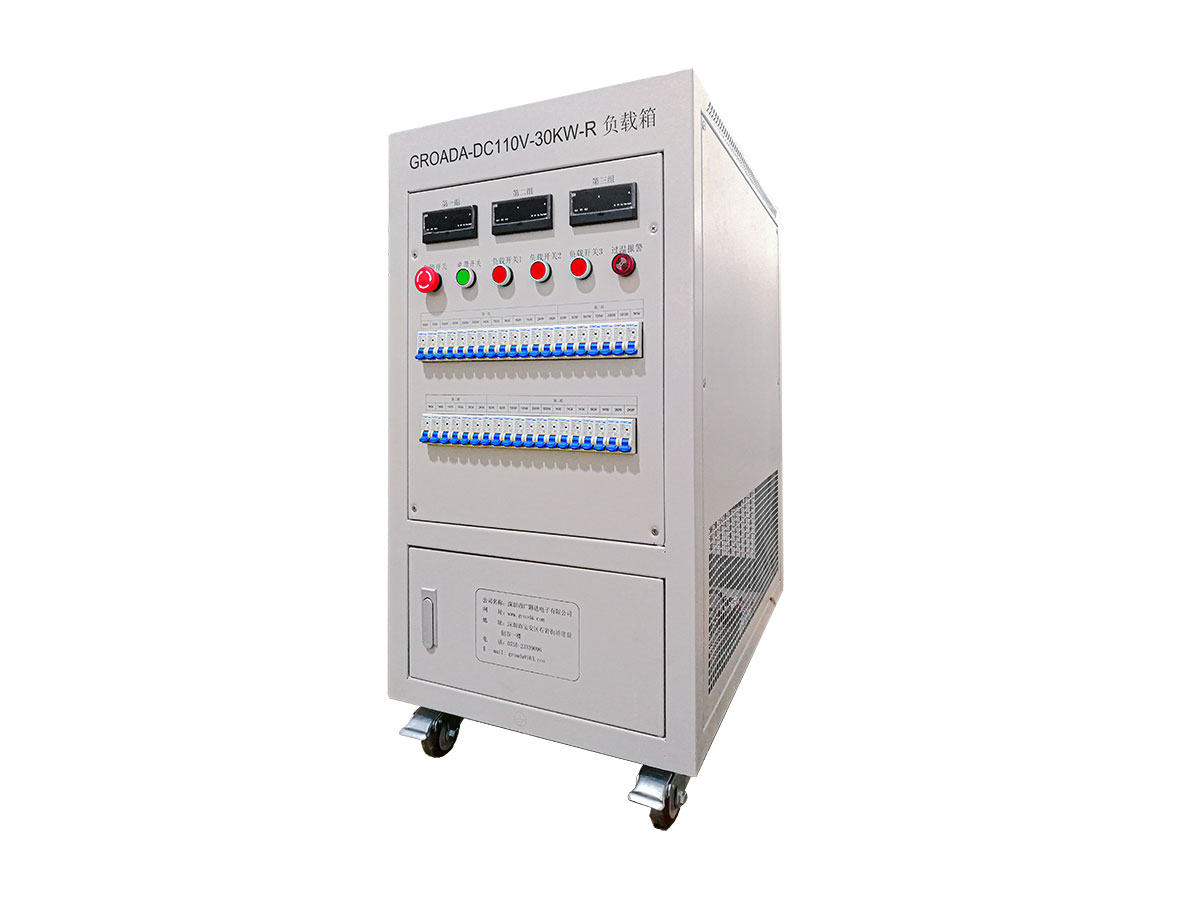

GROADA DC110V-30KW-R Load Bank: Precision Testing for Critical DC Power Systems
The GROADA DC110V-30KW-R Load Bank is a high-performance testing solution designed to simulate real-world electrical loads on DC power systems. With a capacity of 30 kW and a voltage rating of 110V DC, this load bank is ideal for applications requiring precise and reliable load testing.
🔧 Key Features
-
High Power Capacity: Delivers up to 30 kW of resistive load, suitable for testing large-scale DC power systems.
-
Wide Voltage Range: Operates at 110V DC, accommodating a variety of DC power sources.
-
Precision Control: Offers accurate load simulation to ensure thorough testing of power systems.
-
Robust Design: Built to withstand demanding testing environments, ensuring longevity and reliability.
-
User-Friendly Interface: Equipped with intuitive controls for easy operation and monitoring.
🛠️ Applications
-
Battery Testing: Evaluate the performance and capacity of DC batteries under simulated load conditions.
-
UPS Systems: Test uninterruptible power supplies to ensure they can handle full-rated loads.
-
Renewable Energy Systems: Simulate real-world loads on solar or wind power systems to assess performance.
-
Telecommunications: Verify the reliability of DC power systems in communication infrastructure.
📊 Technical Specifications
-
Model: GROADA DC110V-30KW-R
-
Voltage: 110V DC
-
Power Capacity: 30 kW
-
Load Type: Resistive
-
Cooling Method: Air-cooled
-
Control Interface: Digital
-
Safety Features: Overload protection, short circuit protection
✅ Why Choose GROADA DC110V-30KW-R Load Bank?
-
Reliability: Designed for continuous operation, ensuring consistent performance during testing.
-
Flexibility: Suitable for a wide range of DC power systems, from small batteries to large UPS units.
-
Compliance: Meets industry standards for safety and performance, ensuring reliable test results.
-
Support: Backed by GROADA's commitment to customer satisfaction and technical support.
Incorporating the GROADA DC110V-30KW-R Load Bank into your testing procedures ensures that your DC power systems are thoroughly evaluated under realistic conditions, providing confidence in their performance and reliability.
