Product images are provided for visual reference. Please confirm the final configuration and specifications with our team.
Industrial Testing Equipment
GROADA-DC300V/600V/1000V-100KW-R Load Bank Factory
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | GROADA-DC48V-R | GROADA-DC60V-R | GROADA-DC110V-R | GROADA-DC220V-R | GROADA-DC500V-R | GROADA-DC750V-R | GROADA-DC1000V-R |
| Rated current | 0 ~ 5000A | ||||||
| Input voltage | 0~1500V | ||||||
| Minimum loading | 0.1A | ||||||
| Other minimum loading can be customized according to requirements | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | ||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | ||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | ||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | ||||||
| Working power supply | GROADA/AC380V | ||||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | ||||||
| Display parameters | Voltage, current, power, etc. | ||||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | ||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | ||||||
| Working temperature | -10 ℃ ~ 55 ℃ | ||||||
| Relative humidity | ≤95%RH | ||||||
| Altitude | ≤ 2500 m | ||||||
GROADA DC Load Bank: Precision Testing for Critical Power Systems
Overview

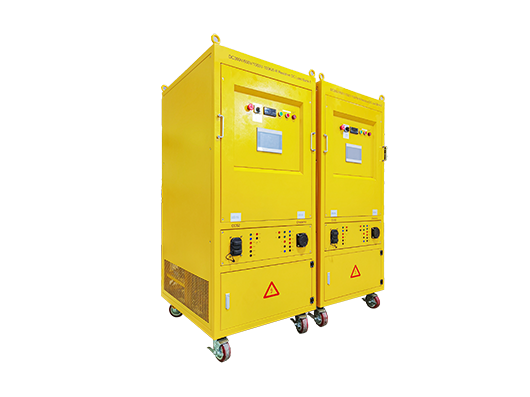

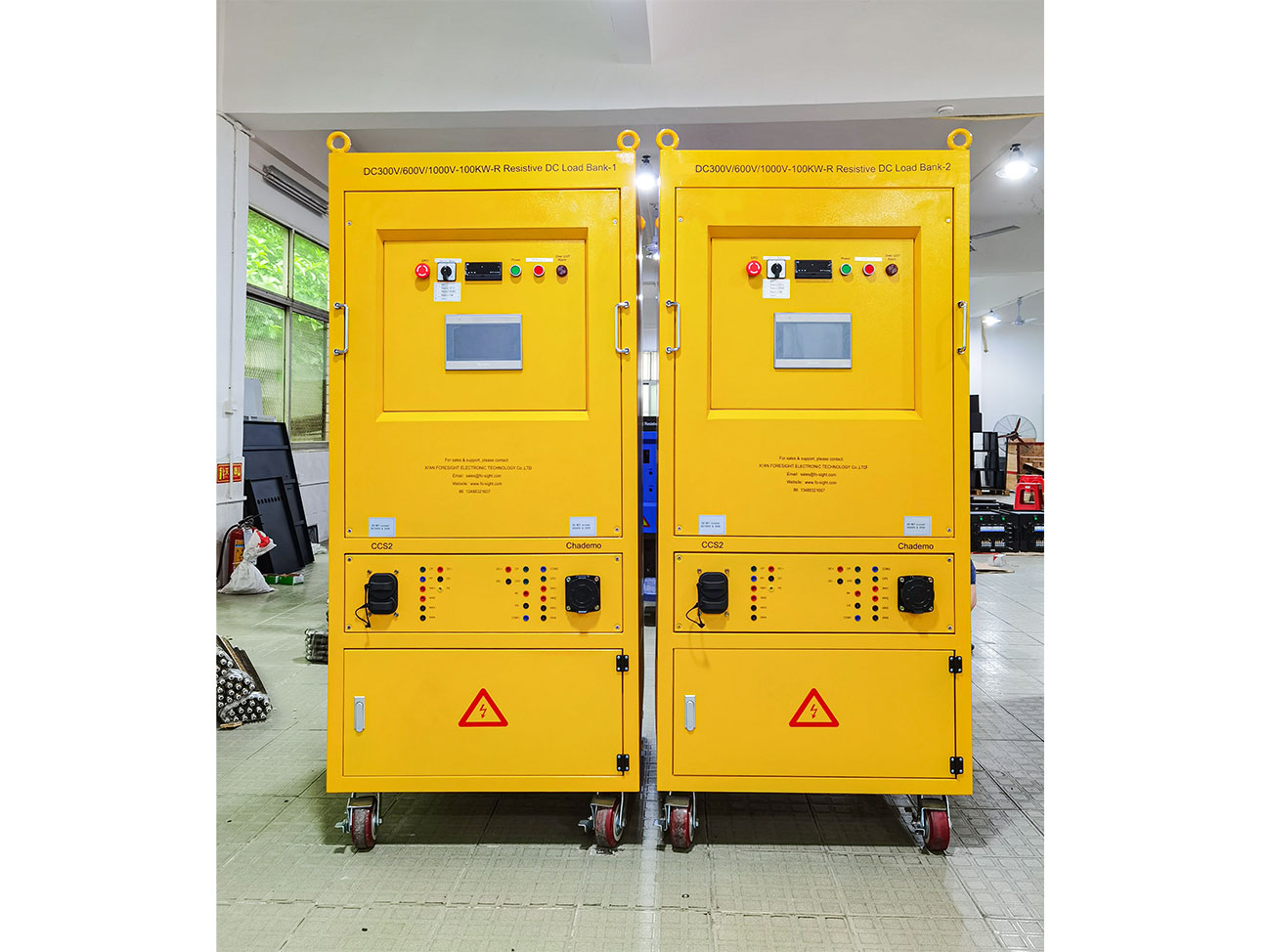

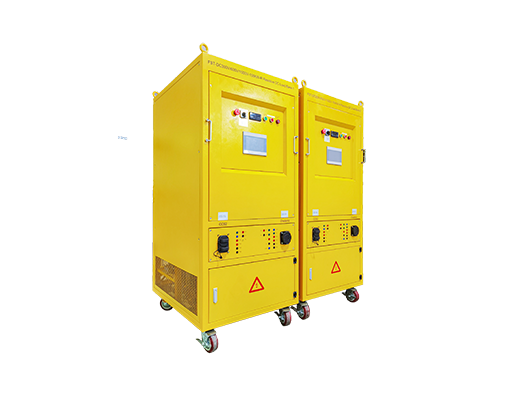

The GROADA DC Load Bank (Model: DC300V/600V/1000V-100KW-R) is engineered for rigorous testing and validation of DC power systems. With a versatile voltage range of 300V to 1000V and a robust 100kW power capacity, it is designed to simulate real-world load conditions, ensuring the reliability and performance of critical infrastructure.
Key Features
-
Wide Voltage Compatibility: Supports 300V, 600V, and 1000V DC systems, making it ideal for diverse applications, including battery banks, UPS systems, and renewable energy setups.
-
High Power Capacity: Delivers up to 100kW of resistive load, accommodating the testing needs of large-scale power systems.
-
Precision Load Simulation: Provides accurate and stable load conditions to assess system performance under various operational scenarios.
-
Durable Construction: Built with high-quality materials to withstand demanding testing environments, ensuring longevity and reliability.
-
User-Friendly Interface: Equipped with intuitive controls and displays for easy operation and monitoring during testing procedures.
Applications
This load bank is essential for industries where uninterrupted DC power is critical, including:
-
Data Centers: Testing UPS systems and backup batteries to prevent downtime.
-
Renewable Energy: Validating the performance of solar and wind power storage systems.
-
Telecommunications: Ensuring the reliability of backup power for communication networks.
-
Transportation: Testing battery systems in electric vehicles and charging stations.
Industry Trends
The global load bank market is experiencing significant growth, driven by the increasing demand for reliable power systems across various sectors. Technological advancements, such as the integration of IoT and digital monitoring, are enhancing the capabilities of load banks, enabling real-time data acquisition and predictive maintenance.
In particular, the portable DC load bank segment is expanding rapidly, fueled by the need for on-site testing and maintenance in remote locations. This trend underscores the importance of having versatile and mobile testing solutions like the GROADA DC Load Bank.
Why Choose GROADA?
-
Expertise: With years of experience in power testing solutions, GROADA delivers products that meet international standards and customer expectations.
-
Quality Assurance: Each load bank undergoes rigorous testing to ensure optimal performance and durability.
-
Customer Support: GROADA offers comprehensive after-sales support, including training, maintenance, and technical assistance.
Conclusion
The GROADA DC Load Bank (Model: DC300V/600V/1000V-100KW-R) is a reliable and efficient solution for testing and validating DC power systems. Its advanced features, coupled with GROADA's commitment to quality and customer satisfaction, make it an indispensable tool for industries that rely on uninterrupted DC power.
