Industrial Testing Equipment

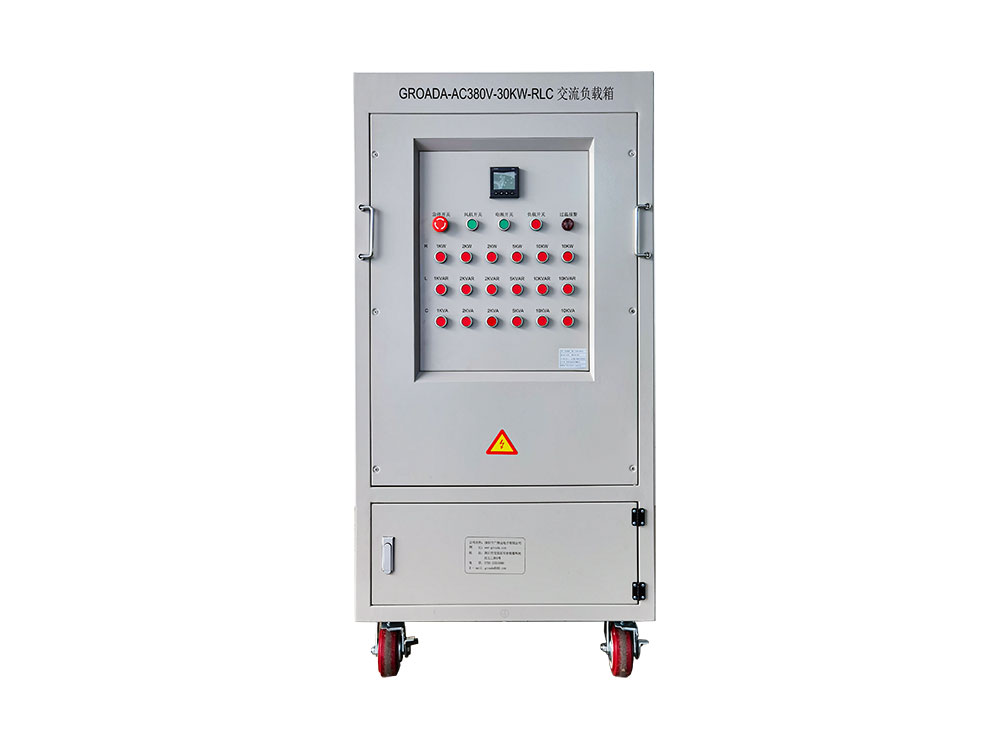

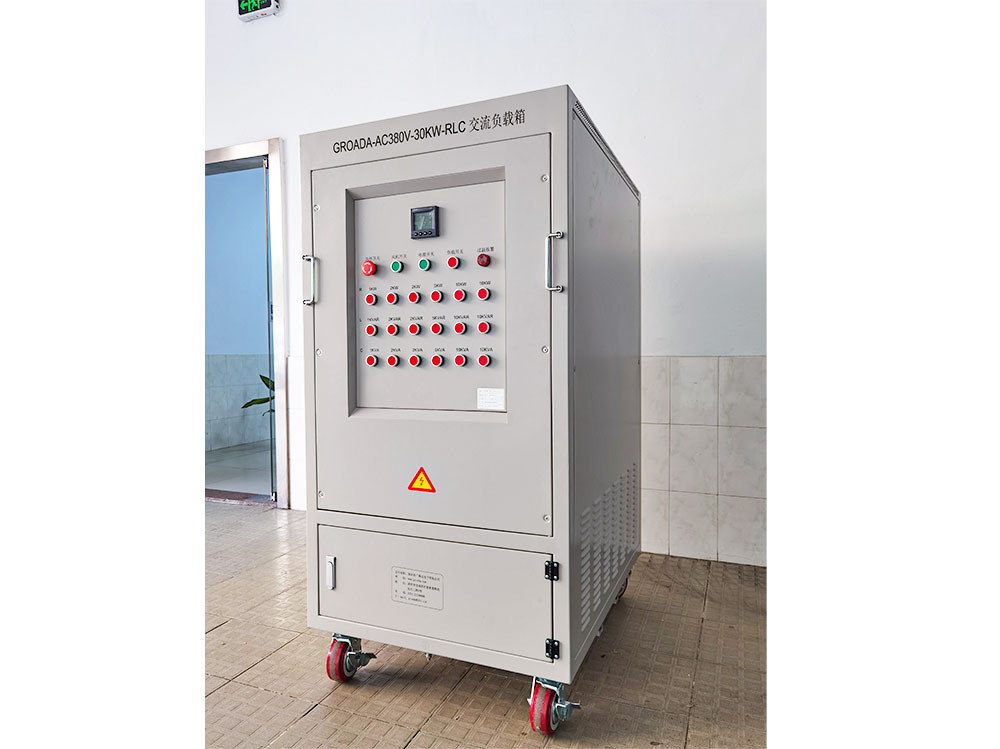

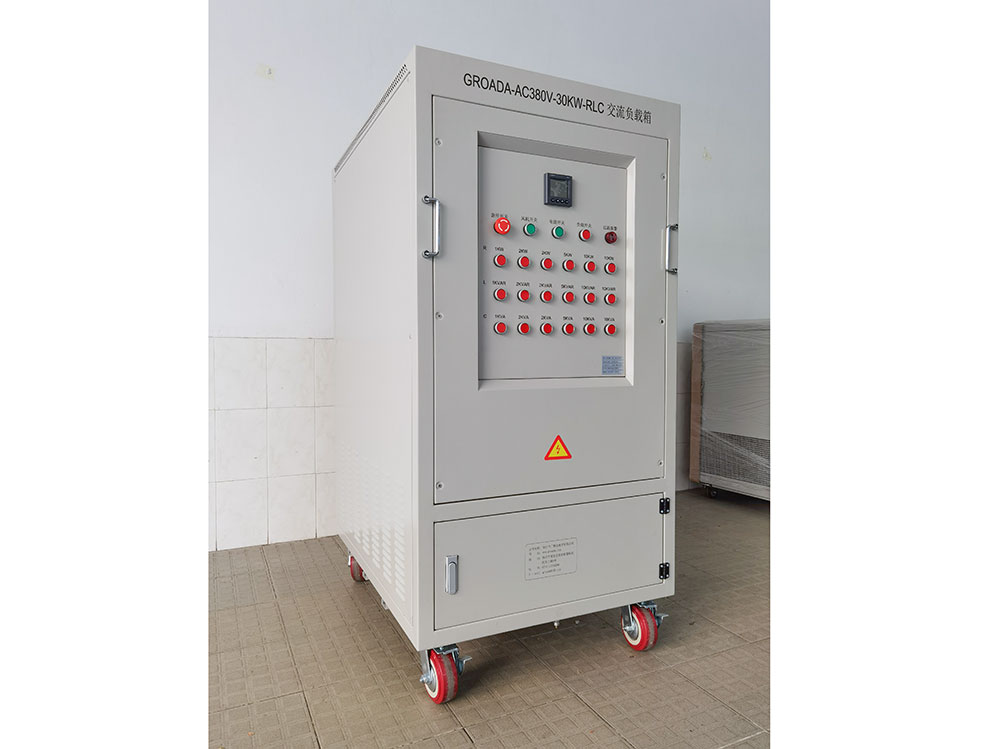

GROADA-AC380V-30KW-RLC Three Phase AC Load Bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-10KVA-RLC | AC380V-30KVA-RLC | AC380V-60KVA-RLC | AC380V-100KVA-RLC | AC380V-200KVA-RLC | AC380V-300KVA-RLC |
| Rated power | RLC=10KVA | RLC=30KVA | RLC=60KVA | RLC=100KVA | RLC=200KVA | RLC=300KVA |
| R=10KW;L=10KVA C=10KVA | R=30KW;L=30KVA; C=30KVA | R=60KW;L=60KVA; C=60KVA | R=100KW;L=100KVA; C=100KVA | R=200KW;L=200KVA; C=200KVA | R=300KW;L=300KVA; C=300KVA | |
| Other power can be customized according to requirements | ||||||
| Size (width * depth * height mm) | 500*750*1400 | 600*850*1500 | 1000*1100*1500 | 1100*1600*1500 | 1500*1800*1800 | 2000*2000*2000 |
| Weight | 120KG | 380KG | 580KG | 880KG | 1500KG | 2500KG |
| Input voltage | AC220/230V | AC380/400V | ||||
| Other input voltage can be customized according to requirements | ||||||
| Input current | 0-45A | 0-45A | 0-90A | 0-150A | 0-300A | 0-450A |
| Minimum loading | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=100W;L=100VA; C=100VA | R=1KW;L=1KVA; C=1KVA | R=1KW;L=1KVA; C=1KVA |
| Other minimum loading power can be customized according to requirements | ||||||
| power factor | PF = 0.1~1.0 (other power factor can be customized according to requirements) | |||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements) | |||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||
| Cold sure way | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | |||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||
| Relative humidity | ≤95%RH | |||||
| Altitude | ≤ 2500 m | |||||
GROADA AC380V-30KW-RLC Three-Phase Load Bank: Precision Power System Testing
🔌 Overview
The GROADA AC380V-30KW-RLC Three-Phase Load Bank is a state-of-the-art testing solution engineered to simulate real-world electrical loads in power systems. By integrating resistive (R), inductive (L), and capacitive (C) components, this load bank provides a comprehensive platform for evaluating the performance and reliability of generators, transformers, UPS systems, and other critical power equipment.
⚙️ Key Features
-
Comprehensive Load Simulation: Combines resistive, inductive, and capacitive loads to replicate diverse operational conditions, ensuring thorough testing of power systems.
-
High Power Capacity: Delivers up to 30 kW of load, suitable for a wide range of applications including generator testing, transformer evaluation, and power distribution assessments.
-
Three-Phase Operation: Designed for three-phase systems, facilitating balanced load testing and accurate performance analysis.
-
Advanced Control Interface: Features a user-friendly control panel for precise load adjustments and monitoring, enhancing operational efficiency.
-
Robust Construction: Built with durable materials to withstand rigorous testing environments, ensuring longevity and reliability.
📊 Technical Specifications
-
Rated Voltage: AC380V
-
Rated Power: 30 kW
-
Load Types: Resistive (R), Inductive (L), Capacitive (C)
-
Frequency: 50/60 Hz
-
Cooling Method: Air-cooled
-
Control Mode: Manual/Automatic
-
Protection Features: Overload, short circuit, and over-temperature protection
🌍 Applications
-
Generator Testing: Validate the performance and capacity of backup and prime power generators.
-
Transformer Evaluation: Assess transformer load handling capabilities and thermal performance.
-
Power Distribution Systems: Test and calibrate power distribution networks for optimal performance.
-
Data Centers: Ensure uninterrupted power supply by testing UPS systems and backup generators.
-
Renewable Energy Installations: Evaluate the integration and performance of renewable energy sources within the grid.
📈 Industry Insights
The global load bank market is experiencing significant growth, driven by the increasing demand for reliable power systems and the expansion of renewable energy sources. According to industry reports, the market is projected to reach USD 524.1 million by 2032, growing at a CAGR of 6.2% from 2024 to 2032. This trend underscores the importance of advanced testing equipment like the GROADA AC380V-30KW-RLC Load Bank in ensuring the reliability and efficiency of power systems worldwide.
✅ Why Choose GROADA?
-
Expertise: With years of experience in power system testing solutions, GROADA delivers products that meet international standards and customer expectations.
-
Quality Assurance: Each load bank undergoes rigorous testing to ensure optimal performance and durability.
-
Customer Support: Dedicated technical support to assist with installation, operation, and maintenance.
-
Customization: Tailored solutions to meet specific testing requirements and environmental conditions.
