Industrial Testing Equipment

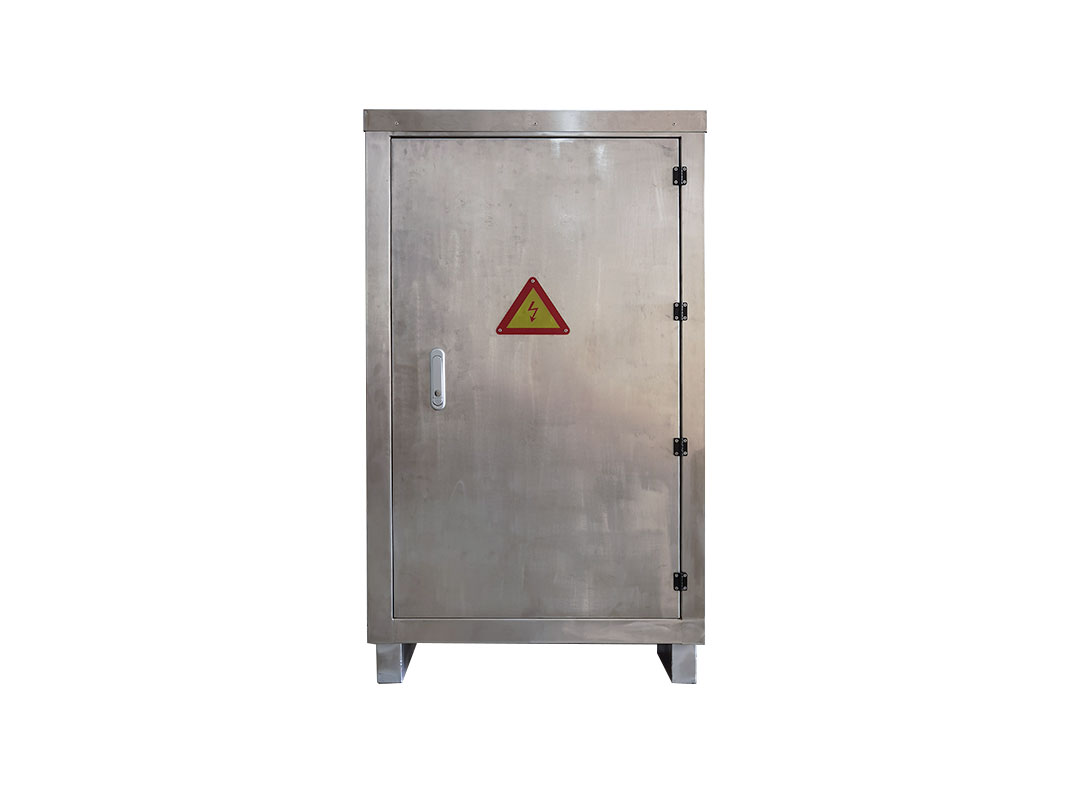

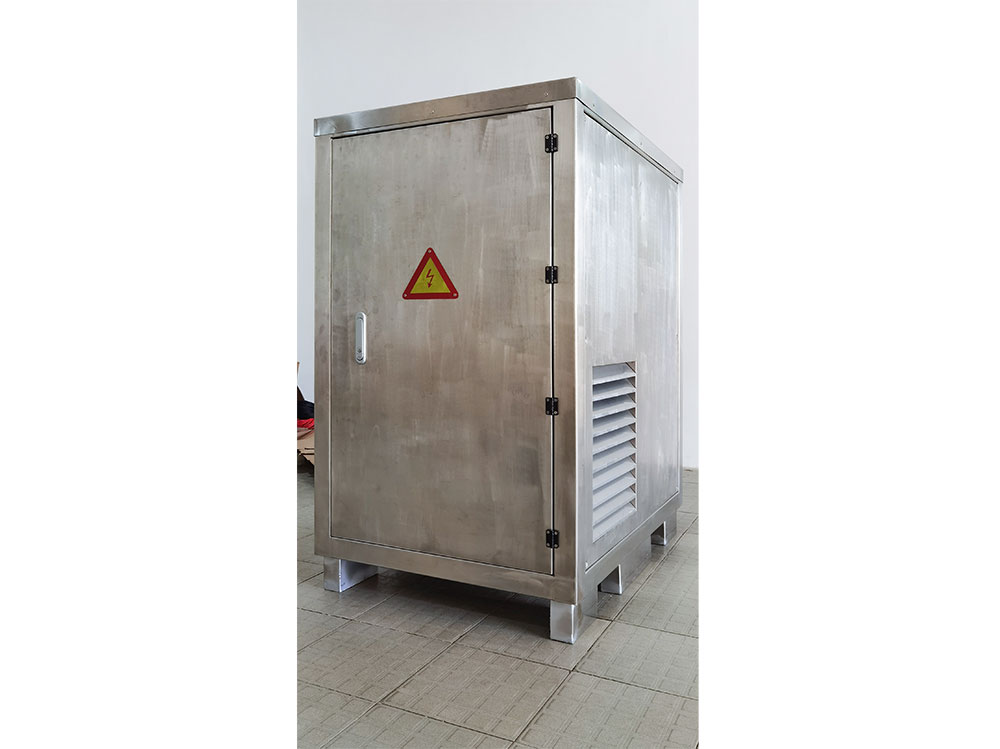

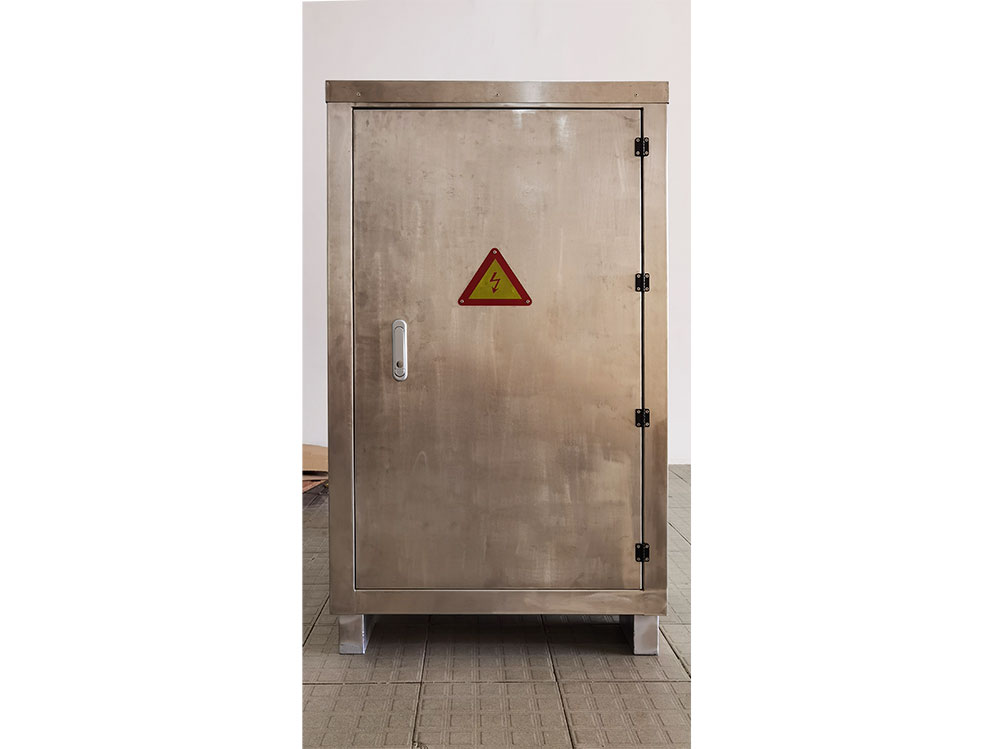

GROADA-AC400V-80KW-R stainless steel resistance load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||
GROADA AC400V-80KW-R Resistive Load Bank
🔌 Product Overview
The GROADA AC400V-80KW-R is a high-performance resistive load bank engineered to simulate real-world electrical loads for testing and maintenance of AC power systems. With a robust stainless steel construction, it ensures durability and reliability in various industrial environments.
⚙️ Key Specifications
-
Rated Power: 80 kW
-
Input Voltage: AC 400V
-
Frequency: 50/60 Hz
-
Cooling Method: Forced air
-
Construction Material: Stainless steel
-
Control Interface: Local manual control panel
-
Safety Features: Overload protection, short-circuit protection, and thermal cut-off
🛠️ Applications
The GROADA AC400V-80KW-R resistive load bank is ideal for:
-
Generator Testing: Simulating real-world electrical loads to verify generator performance and capacity.
-
UPS Systems Testing: Ensuring uninterruptible power supplies can handle full-rated loads during power outages.
-
Power System Commissioning: Verifying the capacity, efficiency, and stability of new power systems.
-
Data Centers: Testing backup power systems to ensure continuous operation during power failures.
-
Industrial Facilities: Regular maintenance and testing of power systems to prevent unexpected downtime.
✅ Benefits
-
Accurate Testing: Provides a precise and controllable load to simulate real-world operating conditions, ensuring accurate performance assessment.
-
Enhanced Durability: The stainless steel construction offers superior resistance to corrosion, making it suitable for harsh environments.
-
Safety Assurance: Equipped with multiple safety features to protect both the equipment and operators during testing procedures.
-
Ease of Use: The intuitive control panel allows for straightforward operation, reducing the complexity of testing procedures.
-
Compliance Support: Helps meet industry standards and regulations by ensuring power systems are thoroughly tested and validated.
📊 Industry Insights
According to industry experts, resistive load banks are essential for verifying the performance of power systems by simulating real-world electrical loads. They are particularly effective in applications where a stable and controllable load is required to assess the capabilities of generators, UPS systems, and other AC power sources.
Regular load bank testing is crucial for maintaining the health and reliability of power systems. It helps identify potential issues before they become critical, ensuring continuous operation and minimizing downtime.
🏭 Compliance and Standards
The GROADA AC400V-80KW-R complies with international standards for electrical testing equipment, ensuring reliability and safety in its operations. It is designed to meet the requirements of various industry regulations, providing confidence in its performance and suitability for critical applications.
🏁 Conclusion
The GROADA AC400V-80KW-R resistive load bank is a versatile and reliable solution for testing and commissioning AC power systems. Its robust construction, accurate testing capabilities, and compliance with industry standards make it an essential tool for ensuring the performance and reliability of power systems.
