Industrial Testing Equipment

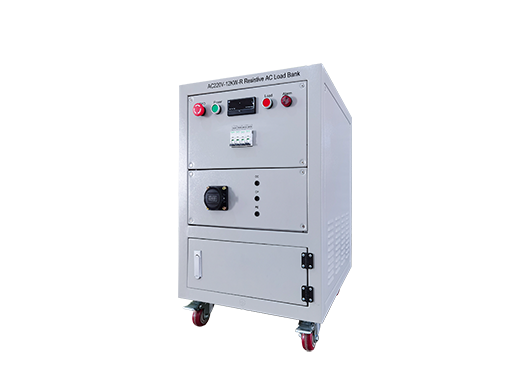

GROADA-AC220V-12KW-R Resistive load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||
GROADA AC220V 12KW Resistive Load Bank: Precision Testing for Critical Power Systems
🔧 Product Overview
The GROADA AC220V 12KW Resistive Load Bank is engineered for rigorous testing of AC power sources, including generators, uninterruptible power supplies (UPS), and inverters. With a power capacity of 12 kW and a voltage rating of 220V, this load bank provides a stable and controllable load to simulate real operational conditions, ensuring the reliability and performance of your power systems.
⚙️ Key Features
-
High Power Capacity: Delivers a consistent 12 kW load, ideal for testing small to medium-sized generators and UPS systems.
-
Precision Control: Allows for fine-tuned load adjustments, facilitating accurate testing and diagnostics.
-
Robust Construction: Designed for durability, ensuring longevity and consistent performance in various testing environments.
-
User-Friendly Interface: Equipped with intuitive controls for ease of operation during testing procedures.
🛠️ Applications
-
Generator Testing: Validates the performance and reliability of generators under load conditions.
-
UPS Systems: Ensures UPS systems can handle full load scenarios, confirming their readiness during power outages.
-
Inverter Testing: Simulates real-world loads to verify the efficiency and stability of inverters.
-
Routine Maintenance: Facilitates regular testing to maintain optimal performance of power systems.
📊 Technical Specifications
-
Model: GROADA AC220V 12KW Resistive Load Bank
-
Power Capacity: 12 kW
-
Voltage Rating: 220V AC
-
Load Steps: Adjustable in precise increments for detailed testing
-
Cooling Method: Fan-cooled for efficient heat dissipation
✅ Compliance & Standards
This load bank adheres to international standards, ensuring safety and reliability in various applications. It is designed to meet the requirements of IEEE 1547, IEEE 112.3, and NFPA 110, among others, providing confidence in its performance and compliance.
🌐 Why Choose GROADA?
-
Expertise: With years of experience in power testing equipment, GROADA offers products that meet the highest industry standards.
-
Innovation: Continuous research and development ensure that GROADA's load banks incorporate the latest technological advancements.
-
Customer Support: Dedicated support team to assist with installation, operation, and maintenance, ensuring optimal performance.
Investing in the GROADA AC220V 12KW Resistive Load Bank ensures that your power systems are thoroughly tested and ready to perform under any conditions. Trust in GROADA for reliable, efficient, and compliant testing solutions.
