Industrial Testing Equipment

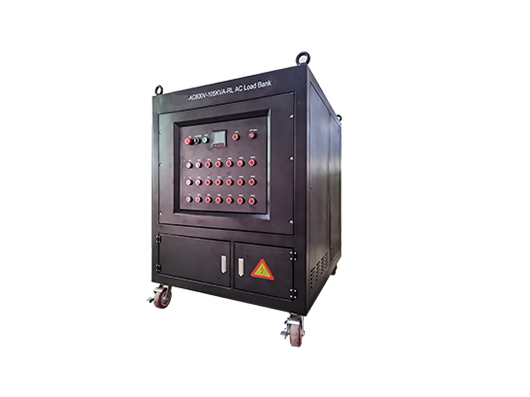

GROADA-AC600-105KVA-R Resistive load bank
Explore product details and technical information, or send us your requirements for application guidance and a quotation.
Request Product Information
Tell us what you need. Our team can follow up with product details and quotation information.
Product Overview & Technical Specifications
| Model | AC220V-6KW-R | AC380V-30KW-R | AC380V-60KW-R | AC380V-100KW-R | AC380V-200KW-R | AC380V-400KW-R | AC380V-500KW-R | AC380V-1000KW-R |
| Rated power | 0-6KW | 0-30KW | 0-60KW | 0-100KW | 0-200KW | 0-400KW | 0-500KW | 0-1000KW |
| Size (width * depth * height mm) | 480*600*277 | 500*750*1000 | 600*850*1000 | 600*850*1400 | 700*1000*1650 | 1100*1400*1700 | 1100*1400*1800 | 1500*1800*2000 |
| Weight | 25KG | 80KG | 130KG | 180KG | 250KG | 550KG | 650KG | 1100KG |
| Input current | 0-30A | 0-45A | 0-90A | 0-150A | 0-300A | 0-600A | 0-750A | 0-1500A |
| Minimum loading | 100W | 100W | 500W | 1KW | 1KW | 5KW | 10KW | 50KW |
| Other minimum loading power can be customized according to requirements | ||||||||
| Input voltage | AC220/230V | AC380/400V | ||||||
| Other input voltage can be customized according to requirements | ||||||||
| Power | PF=1.0 | |||||||
| Overall accuracy | 3% (other accuracy requirements can be customized according to requirements) | |||||||
| Control mode | Local manual/remote host computer (local manual control mode: circuit breaker/button/touch screen three-way optional, other methods can be customized as required) | |||||||
| Remote Interface | RS232/RS485/USB/RJ45/CAN/GPIB (other interface modes can be customized according to requirements) | |||||||
| Protection function | Emergency stop protection, over-temperature protection, fan load interlock protection, grounding protection (select over-voltage protection, over-current protection, short-circuit protection, fan overload, insufficient air volume) | |||||||
| Working power supply | AC220V | AC220V/380V | AC380V | |||||
| Display accuracy | 0.5 level (other explicit precision can be customized according to requirements | |||||||
| Display parameters | Voltage, current, power, frequency, power factor, etc. (other explicit methods can be customized according to requirements) | |||||||
| Cold sure way | Forward and out | Side air inlet and upper air outlet (other air outlet methods can be customized according to requirements) | ||||||
| Protection level | IP20 (other protection level can be customized according to requirements) | |||||||
| Appearance color | RAL7035 (other colors can be customized according to requirements) | |||||||
| Working temperature | -10 ℃ ~ 55 ℃ | |||||||
| Relative humidity | ≤95%RH | |||||||
| Altitude | ≤ 2500 m | |||||||
GROADA-AC600-105KVA-R Resistive Load Bank: Unmatched Performance for Critical Power Systems
⚡ Product Overview
The GROADA-AC600-105KVA-R is a high-performance resistive load bank designed to simulate real-world electrical loads, ensuring the reliability and efficiency of power generation systems. With a robust construction and advanced features, it is ideal for testing generators, uninterruptible power supplies (UPS), and other critical electrical equipment.
🔧 Key Features
-
High Power Capacity: Offers a maximum load capacity of 105 kVA, suitable for testing medium to large-scale power systems.
-
Wide Voltage Compatibility: Operates across a range of voltages, making it versatile for various applications.
-
Precise Load Control: Equipped with advanced control systems to provide accurate and stable load simulation.
-
Durable Construction: Built with high-quality materials to withstand harsh testing environments.
-
User-Friendly Interface: Features an intuitive control panel for easy operation and monitoring.
🛠️ Applications
The GROADA-AC600-105KVA-R is essential for:
-
Generator Testing: Verifying the performance and reliability of backup and prime power generators.
-
UPS Systems: Ensuring the functionality of uninterruptible power supplies in critical applications.
-
Data Centers: Testing power systems to prevent downtime and ensure continuous operation.
-
Industrial Facilities: Maintaining the integrity of power systems in manufacturing and processing plants.
📊 Technical Specifications
| Feature | Specification |
|---|---|
| Load Capacity | 105 kVA |
| Voltage Range | Customizable |
| Load Steps | Fine-grained control |
| Cooling Method | Air-cooled |
| Control Interface | Digital display with keypad |
| Protection Features | Overload, short circuit, and over-temperature protection |
| Compliance Standards | Meets international safety and performance standards |
✅ Why Choose the GROADA-AC600-105KVA-R?
-
Enhanced Reliability: Regular testing with this load bank ensures that power systems operate at peak performance, reducing the risk of unexpected failures.
-
Cost Efficiency: By identifying potential issues early, it helps in minimizing repair costs and downtime.
-
Compliance Assurance: Adheres to industry standards, ensuring that testing procedures meet regulatory requirements.
-
Versatility: Its wide voltage compatibility and precise load control make it suitable for a variety of applications.
🧪 Industry Insights
According to industry standards, load bank testing is crucial for verifying the performance of power systems. The IEEE 112.3 standard provides guidelines for performance testing of dynamic UPS systems, emphasizing the importance of resistive load banks in such tests.
Furthermore, the NFPA 110 standard recommends monthly testing at a minimum of 30% load, with annual 2-hour load bank tests if monthly thresholds aren't met.
🏭 About GROADA
GROADA is a leading manufacturer specializing in the design and production of high-quality load banks. With a commitment to innovation and customer satisfaction, GROADA provides reliable solutions to meet the diverse needs of the power industry.
