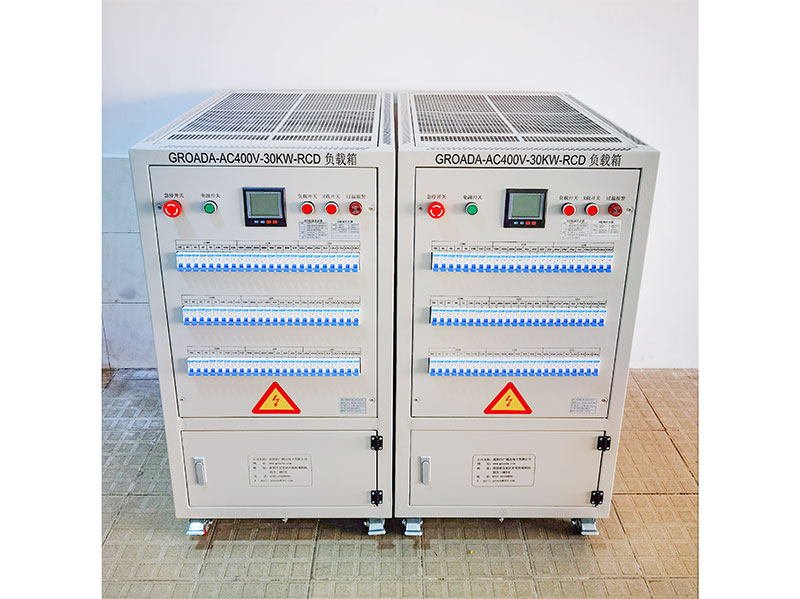

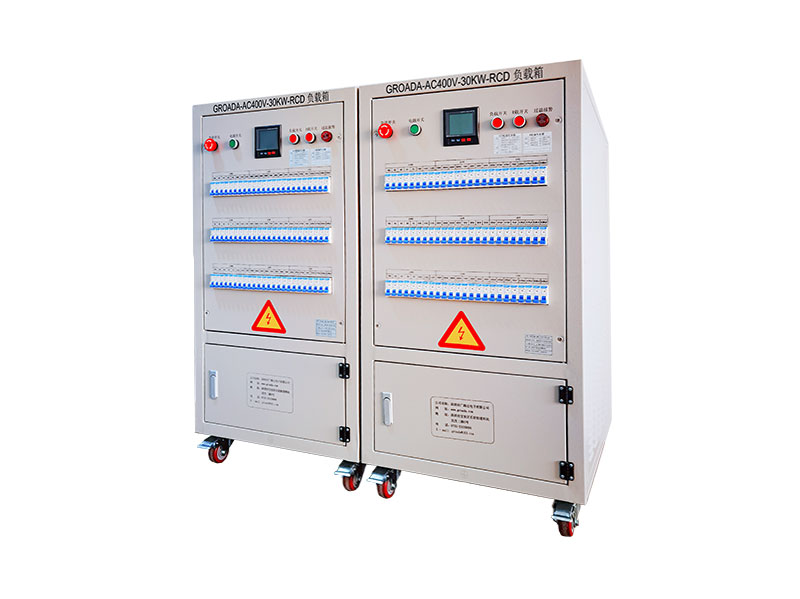

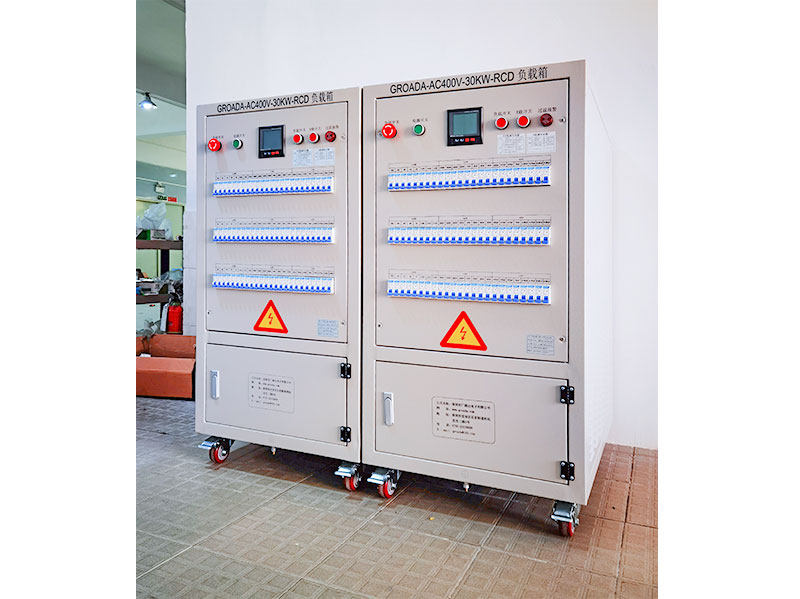

GROADA-AC400V-30KW-RCD inverter load bank

AC 400 V / 30 kW RCD Inverter Load Bank – Technical Overview & Application Guide

1. Introduction

In power electronics and renewable energy systems, precise verification of inverter performance is indispensable. The AC 400 V / 30 kW RCD Inverter Load Bank is engineered to provide reliable, controllable test loads for inverter validation, diagnostics, and calibration. This product is designed for use in R&D, quality control, manufacturing, and field service environments.

This page explains the technical principles, test use cases, performance specifications, and industry best practices — with a view to helping engineers, project leads, and decision-makers make informed choices.

2. Why Use an Inverter Load Bank?

2.1 Purpose & Function

A load bank simulates electrical loads by drawing controlled current from the inverter under test, converting the drawn power into heat (or other forms) while allowing measurement of voltage, current, power, efficiency, and dynamic behavior. In short: it acts as a controlled “dummy load” to stress the inverter and reveal performance characteristics.
This is analogous to standard load banks used for generators or UPS systems.

In inverter testing (especially for photovoltaic (PV) systems, motor drives, or hybrid systems), a load bank helps confirm that the inverter can:

• Sustain rated output under full load

• Handle transient load changes

• Maintain waveform quality, voltage & frequency stability

• Trigger protective functions (overload, overvoltage, overtemperature)

• Operate reliably over extended duration or under climatic stress

Accurate load testing is a key step before deploying inverters to the field — for safety, reliability, and warranty assurance.

2.2 Types of Load Simulation

There are broadly two categories of load simulation used in inverter testing:

1. Passive / Resistive Loads — simple resistive loads (pure resistance) are straightforward, stable, and cost-effective. They are good for baseline performance tests.

2. Active / Reactive / Programmable Loads — more advanced loads that can emulate inductance, capacitance, motor-like behavior, varying power factor, transient behaviors, and bi-directional current flow. These are essential when testing inverters under realistic conditions (e.g. with motors, grid interactions).

For example, a programmable AC load (active AC load) can vary its impedance dynamically, enabling tests across different load scenarios (resistive, inductive, mixed).

The choice of load type depends on the target application (solar, electric vehicle, motor drive) and required test coverage.

3. Key Technical Specifications & Design Features

Below is a suggested structure of specification and feature content you can adapt or extend for your product page.

In your page, you can present these specifications clearly, with callouts (e.g. “Why this matters”), diagrams, and even downloadable PDF spec sheets.

You should also highlight unique selling points (USPs) such as:

• Modular expansion (e.g. stacking load modules)

• Fast dynamic response

• High-precision measurement

• Long-term durability (e.g. continuous full-load operation)

• Safety certifications (CE, UL, etc.)

• Ease of calibration and maintenance

These USPs help users compare your product against alternatives.

4. Application Scenarios & Use Cases

To strengthen E-E-A-T (especially Experience and Expertise), you should incorporate real-world use cases, test methodologies, and examples from industry. Below are four suggested scenarios:

4.1 PV / Solar Inverter Testing

In solar inverter R&D or production, load banks help validate output under varying irradiance, grid fluctuations, and load transients. You verify Maximum Power Point Tracking (MPPT) behavior, interaction with the grid (voltage/frequency synchronization).

You may simulate grid disturbances or ramp up/down loads to confirm inverter stability.

4.2 Motor Drive / EV Inverter Validation

In electric vehicle or industrial motor drives, the inverter outputs to a motor. A load bank that can emulate motor behavior (inductive or dynamic load) is crucial, especially to test regenerative braking, transient response, or torque control. Active loads offer bi-directional current capability, enabling more realistic emulation.

You might also simulate load steps (rapid jerk in torque) and confirm that the inverter’s control loops recover properly.

4.3 Endurance & Environmental Stress Testing

To assess long-term reliability, the load bank is used to run continuous full-load or partial-load tests under temperature, humidity, vibration stress. Manufacturers like ATESTEO use climatic chambers to simulate environments from –60 °C to +160 °C during inverter testing.

Such tests help detect hidden defects (thermal drift, material fatigue, insulation issues) before field deployment.

4.4 Quality Control & Batch Testing

In a production line environment, you may use the load bank to spot-check inverters, validate batch consistency, certify output under worst-case scenarios, or re-test returned units. The fast control interface allows automation and integration into manufacturing test benches.

Describing these concrete applications (with maybe anonymized client stories or case studies) strengthens credibility and usefulness of your page content.

5. Test Methodology & Best Practices

To show experience and guide users, include a detailed “how-to” or best-practice section. This helps users trust your content as authoritative and actionable.

5.1 Step-by-Step Load Test Procedure

1. Preparation & Safety Checks

   • Confirm inverter is disengaged (no output)

   • Verify all safety interlocks

   • Check load bank calibration, cooling, cabling

2. Light Load / No-Load Baseline Test

   • Apply minimal resistive load (e.g. 5–10 % rating)

   • Check baseline behavior, waveform purity via oscilloscope

   • Verify no abnormal noise, heating, oscillation

3. Gradual Load Ramp-Up

   • Increase load in steps (e.g. 20 %, 50 %, 80 %, 100 %)

   • At each step, record voltage, current, real power, power factor, harmonic distortion

   • Monitor temperature, fan activity, internal protection thresholds

4. Full-Load Continuous Operation

   • Run for a designed dwell time (e.g. 1h, 4h, 8h)

   • Log any drift, dropouts, thermal stability

   • Confirm output remains within spec

5. Transient / Step-Change Tests

   • Suddenly change load (increase or decrease 20–50 %)

   • Observe response time, overshoot, oscillation

   • Verify inverter control stability

6. Overload & Fault Simulation (Optional)

   • Slightly exceed rated load to test protection

   • Induce fault (short) in controlled setup (if safety permits)

   • Confirm shutdown, alarm mechanisms

7. Cooling & Thermal Recovery Observation

   • After tests, allow cooldown

   • Monitor any residual heating or slow recovery

8. Data Analysis & Reporting

   • Compile results into charts (efficiency vs load, THD vs load, thermal profile)

   • Compare against design expectations, standards

You may reference general inverter testing guides (e.g. for pure sine wave inverters) as background.

5.2 Design & Deployment Tips

• Always derate load bank if ambient temperature is high

• Ensure cable sizing to avoid voltage drop or overheating

• Synchronize measurement devices (use proper instrumentation)

• Periodically calibrate load modules to maintain accuracy

• Use modular load bank design to scale capacity

• Incorporate safety interlocks, ground references, emergency shutdown

Offering this detailed, stepwise methodology shows your team knows the domain—not just marketing fluff.
