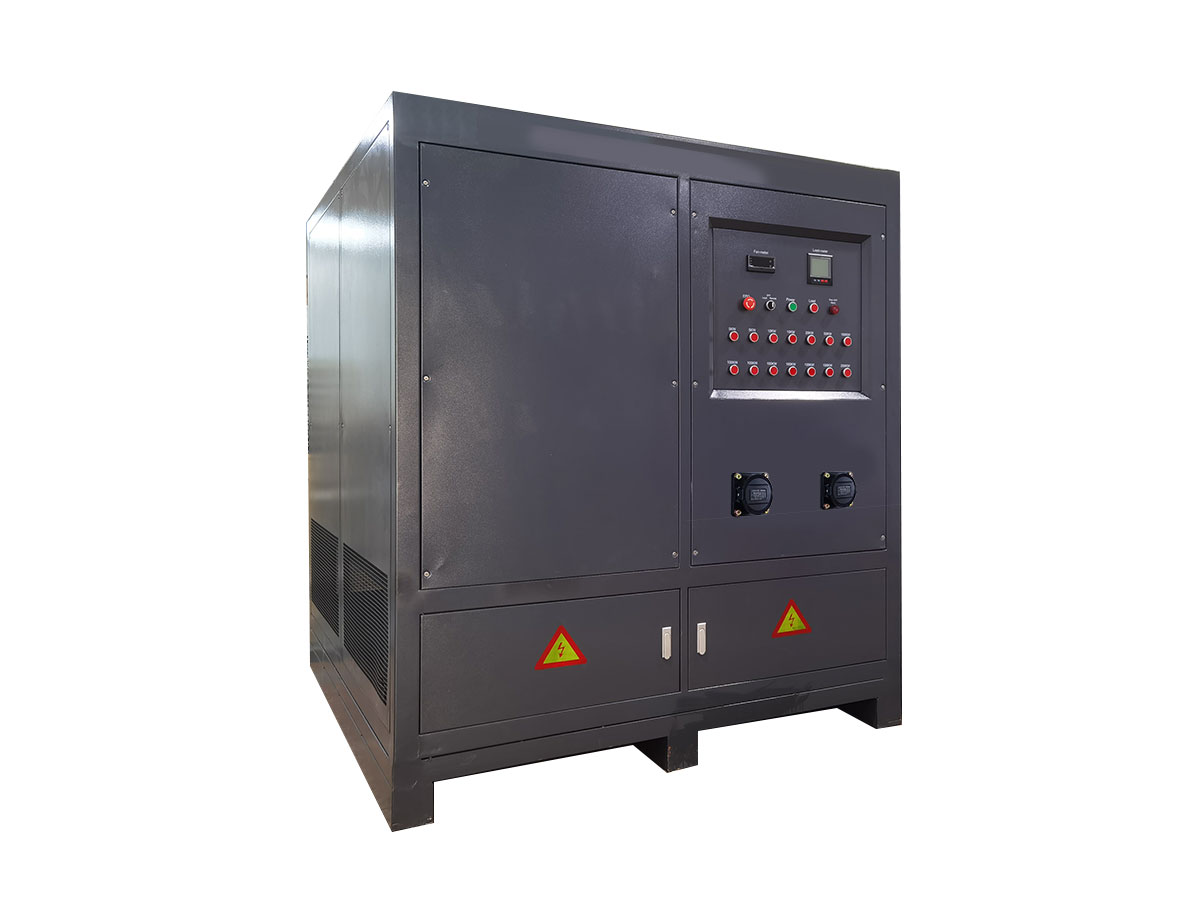

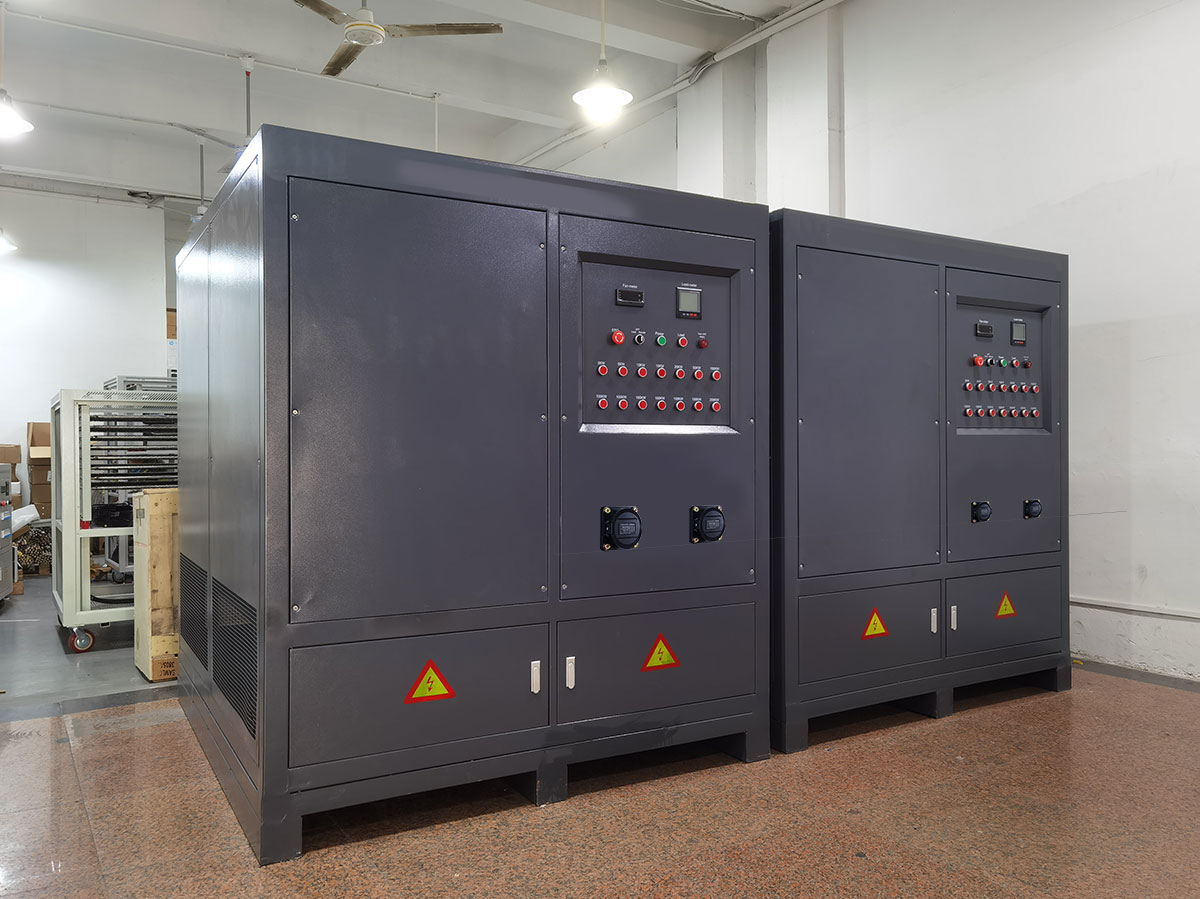

GROADA-DC1000V-200KW-R charging pile test load

1. product introduction:

The AC/DC charging gun plug life/temperature rise aging tester is a fully automated test equipment designed by VILVA for testing various parameters of the AC/DC charging pile gun holder. The testing machine uses servo motor, screw rod, guide rail, etc. as the power, the use of small fixture clamping sample, industrial control one machine computer and programmable logic controller (PLC) as the control center, superior performance, convenient operation, high degree of automation. It is applicable to the electrical plug life test, temperature rise test and contact impedance test of AC/DC charging pile gun holder.

2. product features

1, AC and DC integration, applicable to national standards;

2. The insertion and extraction force test of the gun holder can be carried out;

3, can carry out the gun seat plug life test;

4. The temperature rise test of the gun holder can be carried out;

5. The contact impedance test of the gun holder can be carried out;

6. The product comes with 5V-2000A DC power supply;

7. The product comes with 2000A pure resistive load;

8. Local touch screen & remote PC control;

9. The number of tests, test time, test stroke and conduction current can be preset;

10. Data can be displayed, recorded and printed;

11. Fault record, fault alarm and fault protection;

12. The overall dimensions are about W1750 * D850 * H1713mm, and the casters move;

Relevant standards and specifications

(1) Safety of Power Supplies, Reactors and Similar Products Part 1: General Requirements GB 19212.1-2008

(2) Safety of machinery-Mechanical electrical equipment-Part 1: General technical conditions GB 5226.1-2002

(3) Low-voltage switchgear and controlgear-General (GB/T 14048.1-2000)

(4) Marine Diesel Generator Set (GB/T 13032-2010)

(5) General Specification for Military Internal Combustion Engine Loads GJB 2815-97

(6) General Specification for Military AC Mobile Load GJB 235A-97

(7) General Technical Conditions for Industrial and Intermediate Frequency Mobile Loads GJB 235-87

(8) General Test Method for Military Internal Combustion Engine Loads GJB 1488-93

(9) GBZ1-2002 of Hygienic Standard for the Design of Industrial Enterprises

charging pile load bank specifications:
