Understanding Resistive Load Banks for Generator Testing and Power System Validation

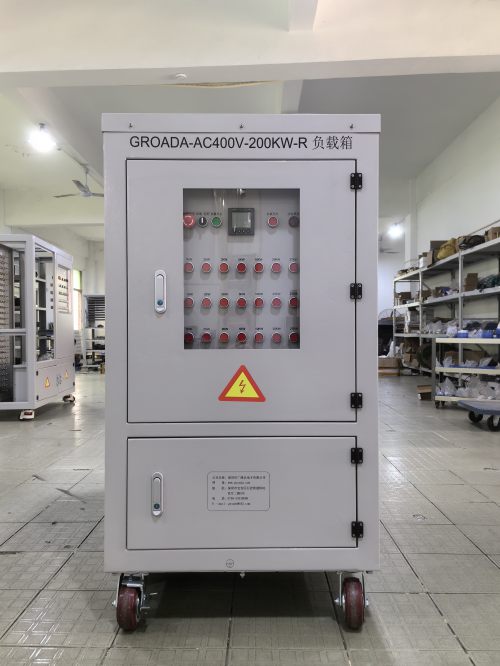

Resistive load banks are essential tools in the testing and validation of power generation systems, including diesel generators, gas turbines, and renewable energy sources like wind or solar farms. These devices simulate real-world electrical loads by converting electrical energy into heat through resistive elements, allowing engineers to verify generator performance under controlled conditions. Unlike reactive or capacitive load banks that model inductive or capacitive loads (such as motors or capacitor banks), resistive load banks provide a pure active power draw—ideal for assessing engine cooling, fuel efficiency, and mechanical stability.
According to IEC 60034-1, which governs the performance testing of rotating electrical machines, load banks must accurately represent operational stress scenarios to ensure long-term reliability. A properly calibrated resistive load bank can simulate from 10% to 100% of full load in steps, enabling factory acceptance tests (FAT), commissioning checks, and routine maintenance verification. For example, during a simulated case study at a 5 MW diesel generator installation, a three-phase resistive load bank was used over 72 hours to validate thermal performance; results showed consistent voltage regulation within ±1.5% and no overheating beyond 75°C on resistor blocks—confirming compliance with IEEE Std 115.
Modern load banks often include digital control systems (e.g., Modbus TCP/IP or CAN bus interfaces) for remote monitoring and automatic load stepping. They feature robust air-cooled designs with IP54 enclosures for outdoor use, E-stop emergency protection, and dual-stage thermal cut-offs. Safety certifications such as CE, UL, and CCC ensure adherence to international standards. Maintenance intervals typically recommend annual calibration using NIST-traceable equipment, while fan assemblies and resistor blocks may require replacement every 5–7 years depending on usage intensity.
Engineers rely on these systems not only for new installations but also for predictive maintenance—especially in critical infrastructure like hospitals, data centers, and industrial plants where uninterrupted power is vital. By mimicking actual load profiles, resistive load banks help identify issues before they cause failures, reducing downtime and extending equipment life.
